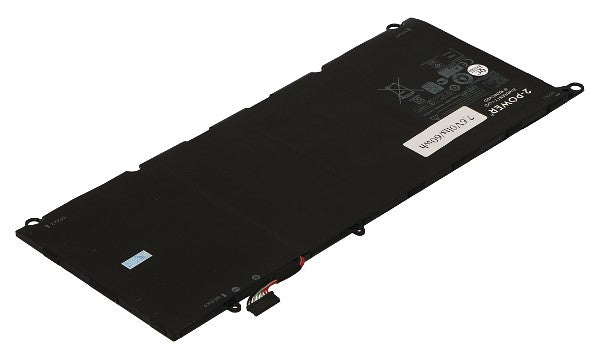

Compatible for Dell XPS 13 9360 Laptop Battery 59Wh 4 Cell PW23Y TP1GT RNP72

Replacement battery for Dell XPS 13 9360 PW23Y TP1GT RNP72 - limited stock available

This replacement has a capacity of 59Wh and 4 cells, Suitable to replace  Dell type  PW23Y under part numbers TP1GT RNP72. This is a replacement battery as the original part is now discontinued. It offers trusted performance so you can work reliably with your laptop. A nominal voltage of 7.6v ensures reliable power output and a long lifespan.

Item: Replacement 4-Cell Battery

Condition: New
Brand: 2 Power

Replaces Dell type: PW23Y
DP/N: TP1GT, 0TP1GT, RNP72, 0RNP72

Voltage: 7.6v

Wh: 59whr

Cells: 4 Cell

Suitable for the following Dell laptop model

Dell XPS 13 9360


Please check you are replacing Type PW23Y before purchase, the Type code can be found on the battery label. You can also contact us and we can check for you.

Please note: Screws are not included. Please retain the original screws for the installation of this part.

UK Seller - Free UK Next Day Shipping - 1 Year Warranty

How to install the battery

PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We also recommend using anti-static equipment to prevent hardware damage.

Removing the old battery

1. Power off the laptop.

2. Turn over the laptop and unscrew the base plate cover.

3. Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)

4. Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)

5. Unscrew the battery and remove the battery from the laptop.

Installing the New Battery

1. Align the new battery into position (Do not plug the battery in yet)

2. Install the battery screws

3. Plug the battery cable into the motherboard

4. Replace the base plate by applying light pressure to ensure it's seated correctly.

5. Install the base plate screws

6. Plug the power adapter into the laptop and then switch on the laptop.
