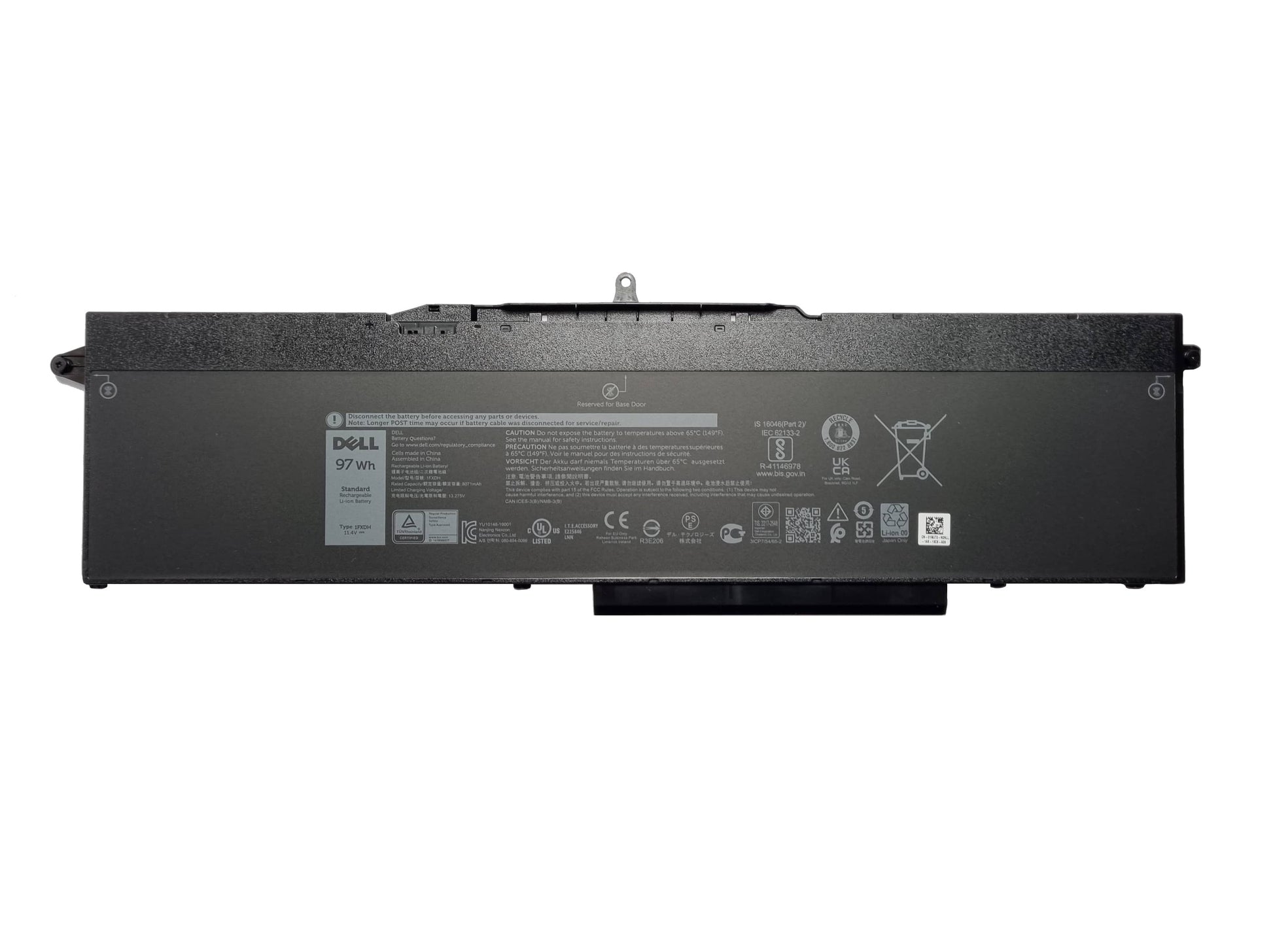

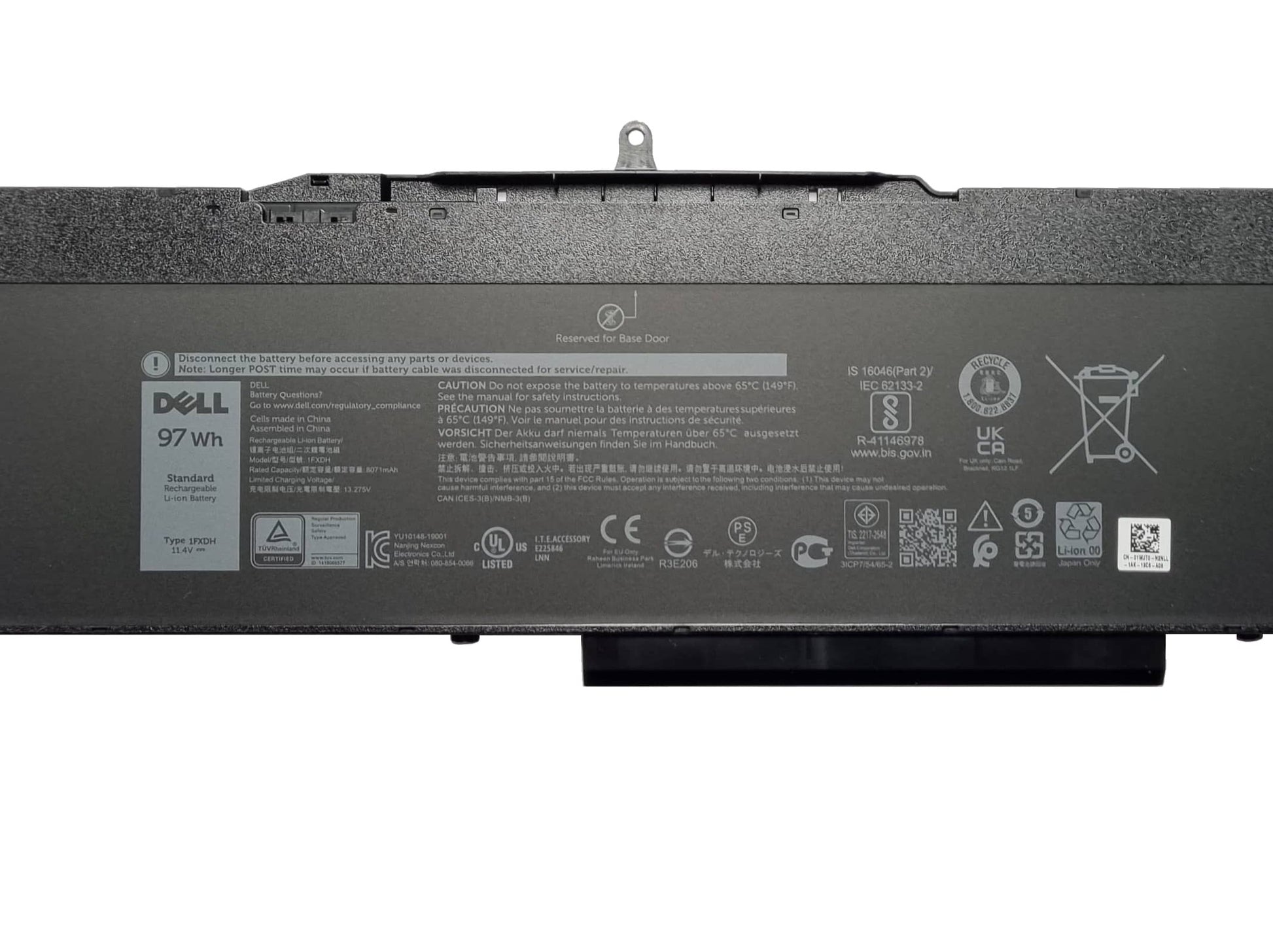

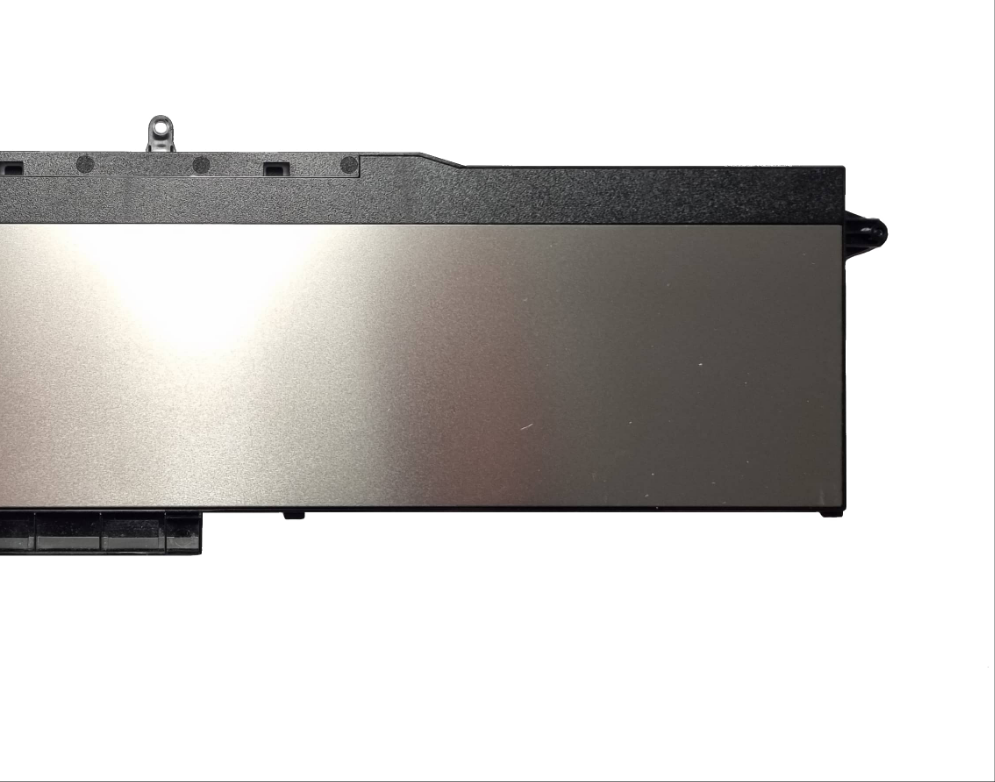

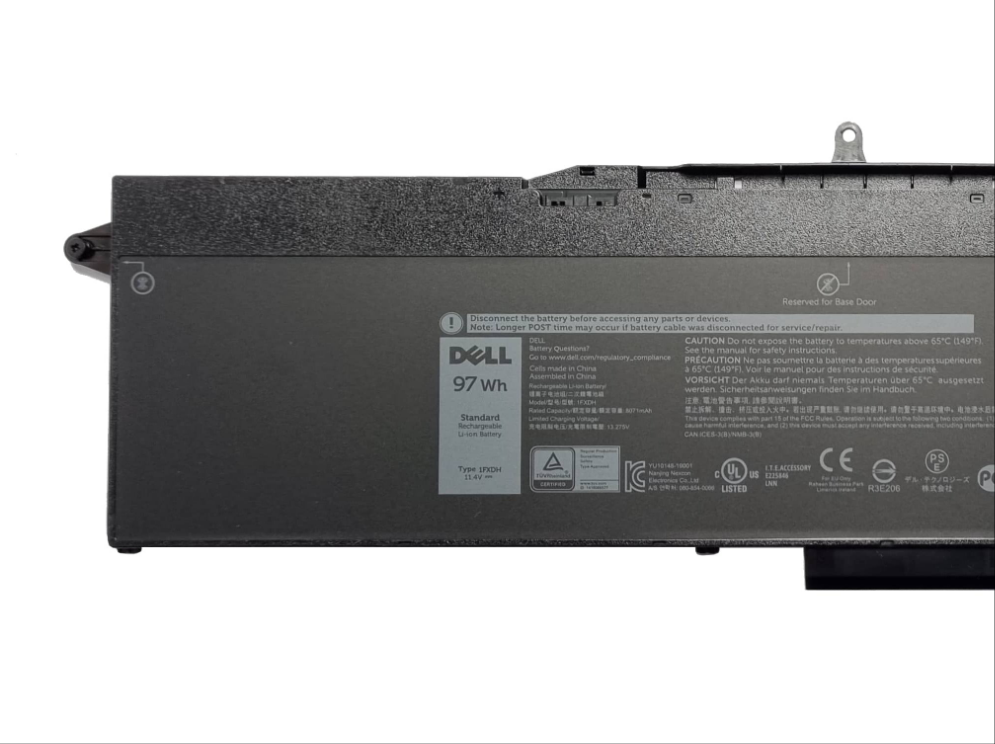

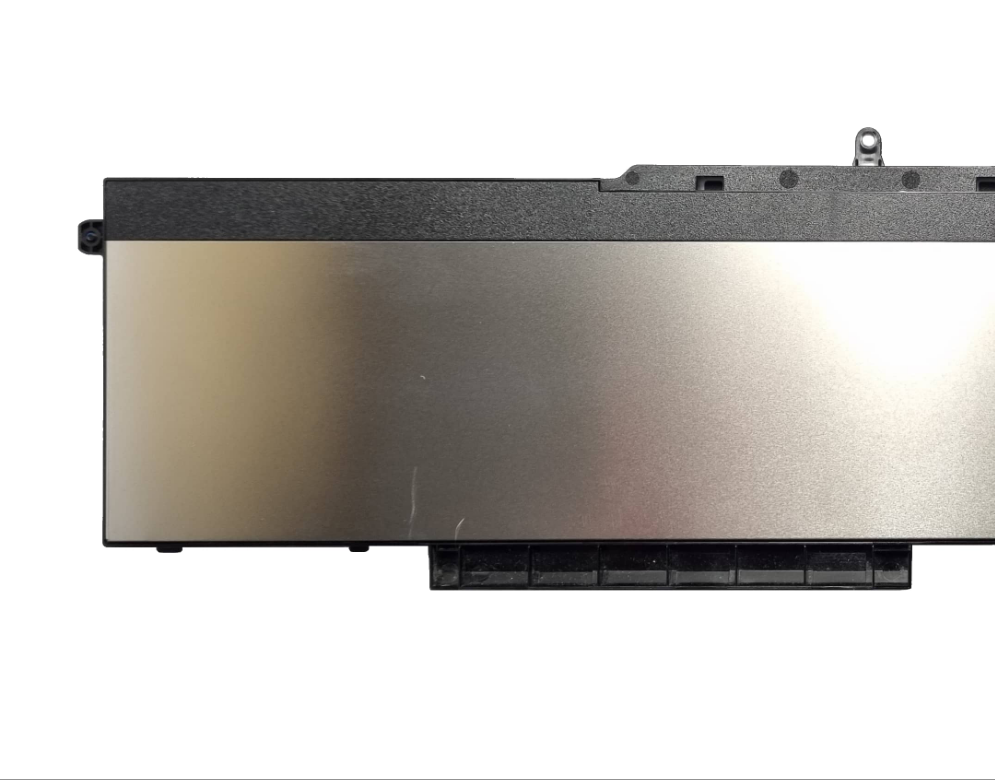

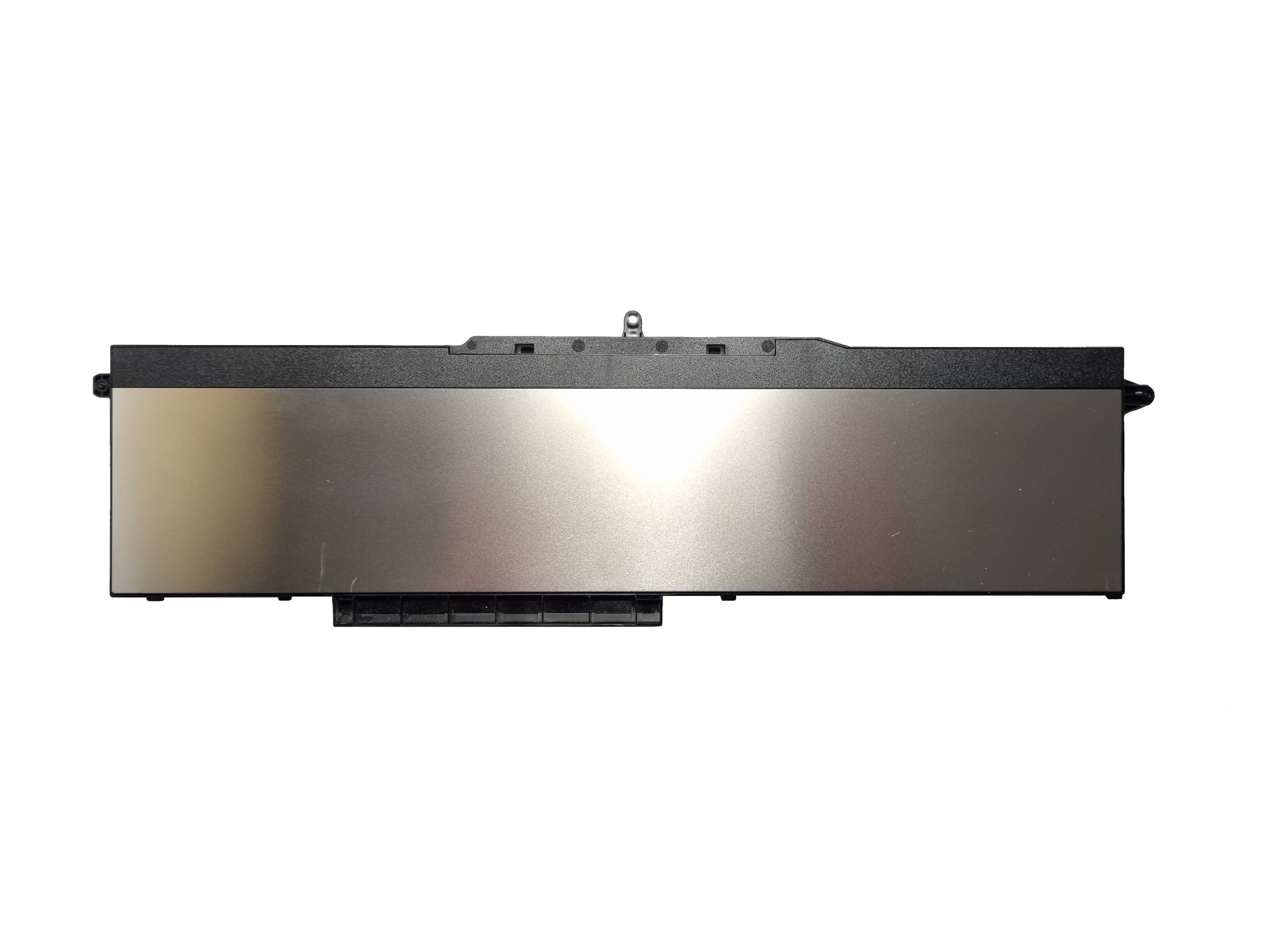

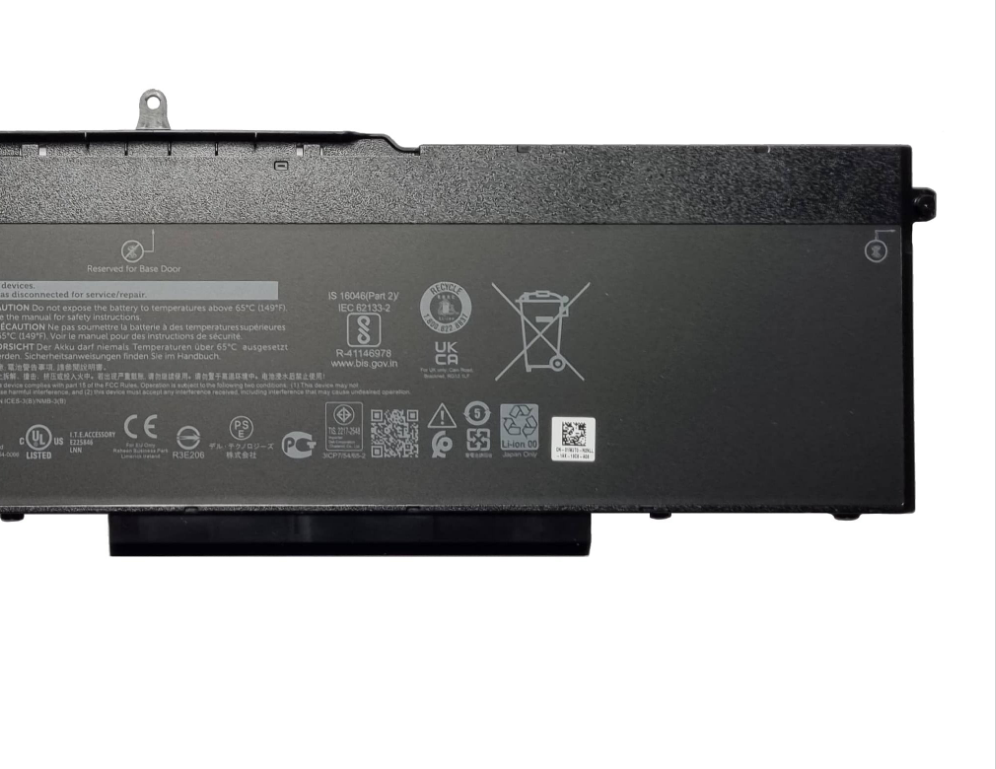

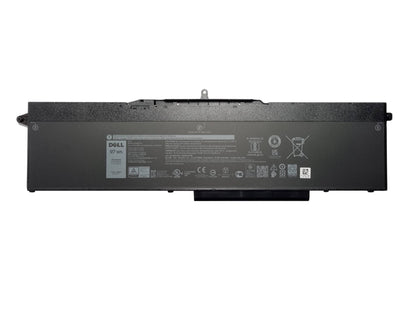

Dell Precision 3541 3551 Latitude 5501 5510 5511 1FXDH 1WJT0 D191G 97WH 6 Cell Battery

Genuine  Precision 3541 3551 Dell Latitude 5501 5510 5511 1FXDH 1WJT0 D191G 97WH 6 Cell Battery

Please note: If you are upgrading your current battery to this higher-capacity version, please check you have sufficient space to accommodate the extra length.

Specifications:

 Limited stock dated 2023

 This battery fits the following Dell Laptops:

 Precision 15 3541

 Precision 15 3551

Dell Latitude 15 5501*

Dell Latitude 15 5510*

Dell Latitude 15 5511*

* Please note the more common solution for these models is on the following link, this battery is compatible subject to sufficient space available in the chassis. Please follow the link below.

https://www.blackcatpc.co.uk/products/dell-cell-68wh-battery-3hwpp-1vy7f?_pos=1&_sid=40f6ff544&_ss=r

UK Seller - Free UK Next-day Shipping - 12 Months Warranty

How to install the battery

PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We also recommend using anti-static equipment to prevent hardware damage.

Removing the old battery

1. Power off the laptop.

2. Turn over the laptop and unscrew the base plate cover.

3. Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)

4. Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)

5. Unscrew the battery and remove the battery from the laptop.

Installing the New Battery

1. Align the new battery into position (Do not plug the battery in yet)

2. Install the battery screws

3. Plug the battery cable into the motherboard

4. Replace the base plate by applying light pressure to ensure it's seated correctly.

5. Install the base plate screws

6. Plug the power adapter into the laptop and switch on the laptop.
