Dell

Dell Latitude 5501 3410, 3510, 3120 4 Cell 53Wh Laptop Battery H5CKD 9077G TX0D3

Dell Latitude 5501 3410, 3510, 3120 4 Cell 53Wh Laptop Battery H5CKD 9077G TX0D3

Regular price £96.49
Regular price Sale price £96.49
Sale Sold out
Tax included. Free UK next working day shipping. Click here to see more shipping options.

Low stock: 4 left

Shipping options and handling times

We offer fast next-day UK shipping. Orders placed before 4 pm will be shipped the same day via DPD, UPS, or Royal Mail. (Excluding bank holidays). Weekend delivery is available for an extra fee.

Please Note: We can now ship to Channel Islands; Northern Ireland and the Isle of Man.

We also offer plain label shipping.

For more information and pricing on express shipping services, Please click here.

Do you need a screwdriver set to open your Dell Laptop?

Precision 24-in-1 Screwdriver set includes all the tip sizes required to open and dismantle Dell laptops.

Only £6 when purchased with any battery, DC port, or assembly part - Discounted at checkout.

Screwdriver sizes:

Torx screwdriver: T2 T3 T4 T5 T6 T7 T8 T9 T10 T15

Phillips screwdriver: 0.6 1.0 1.2 1.5 2.0 3.0

Flat screwdriver: 1.0 1.5 2.0 3.0 7.3

Point screwdriver: 0.8

Click here for more information

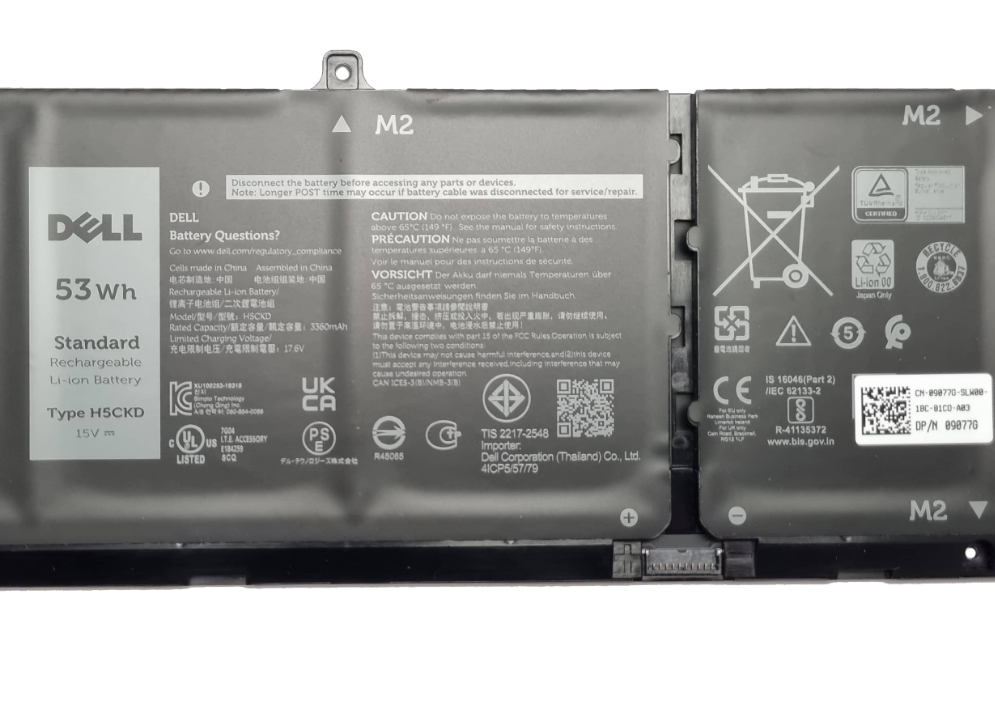

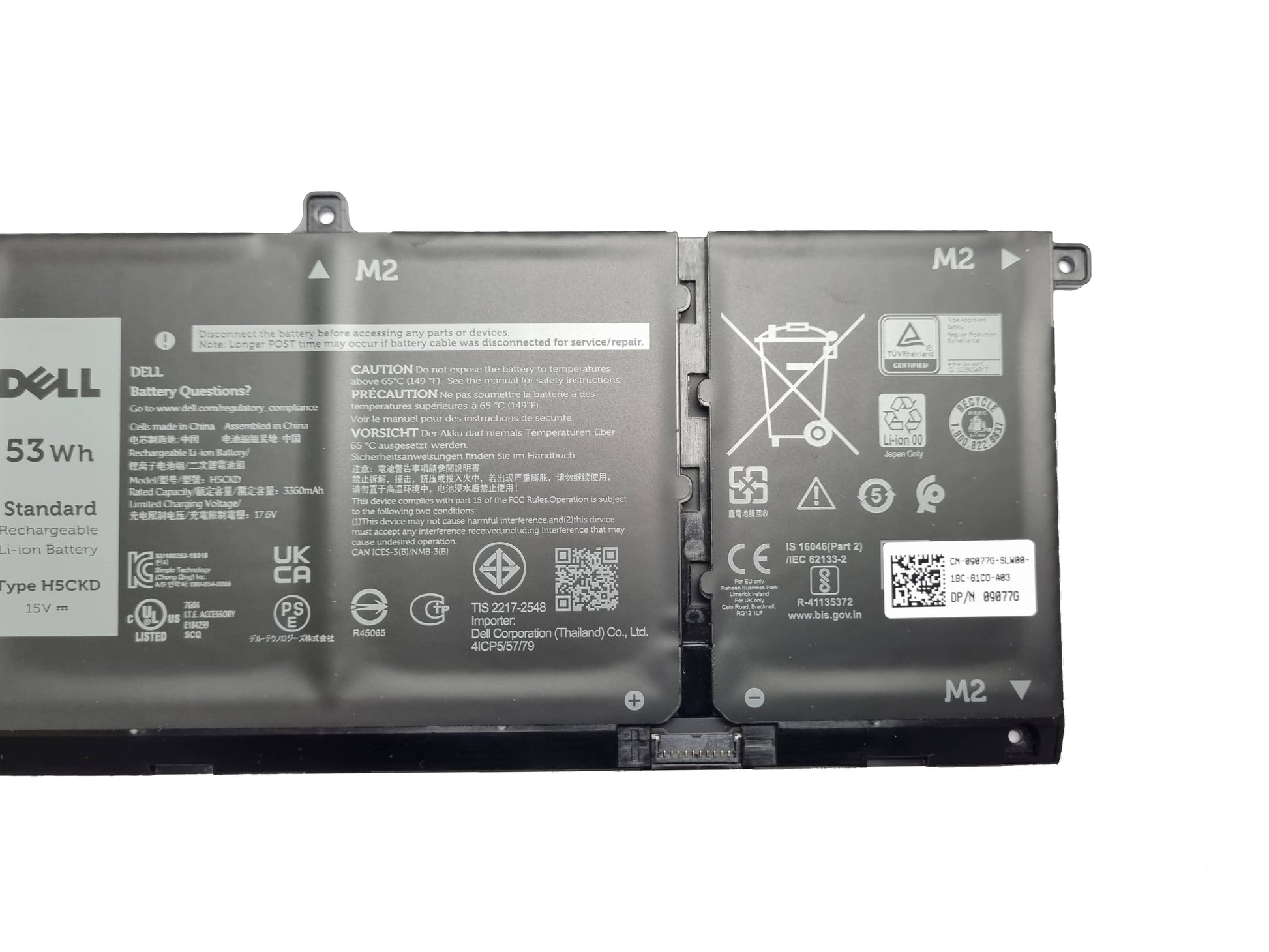

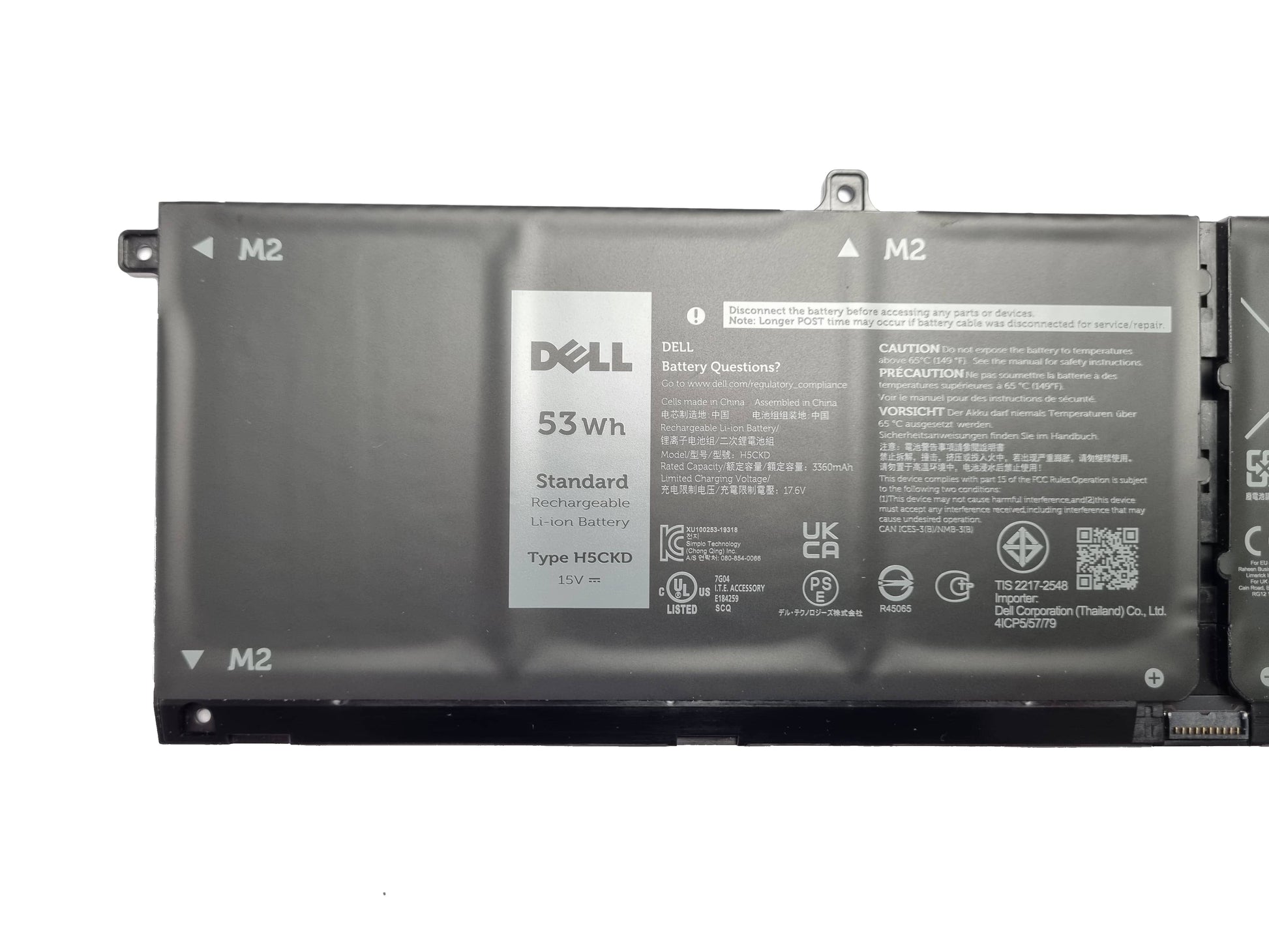

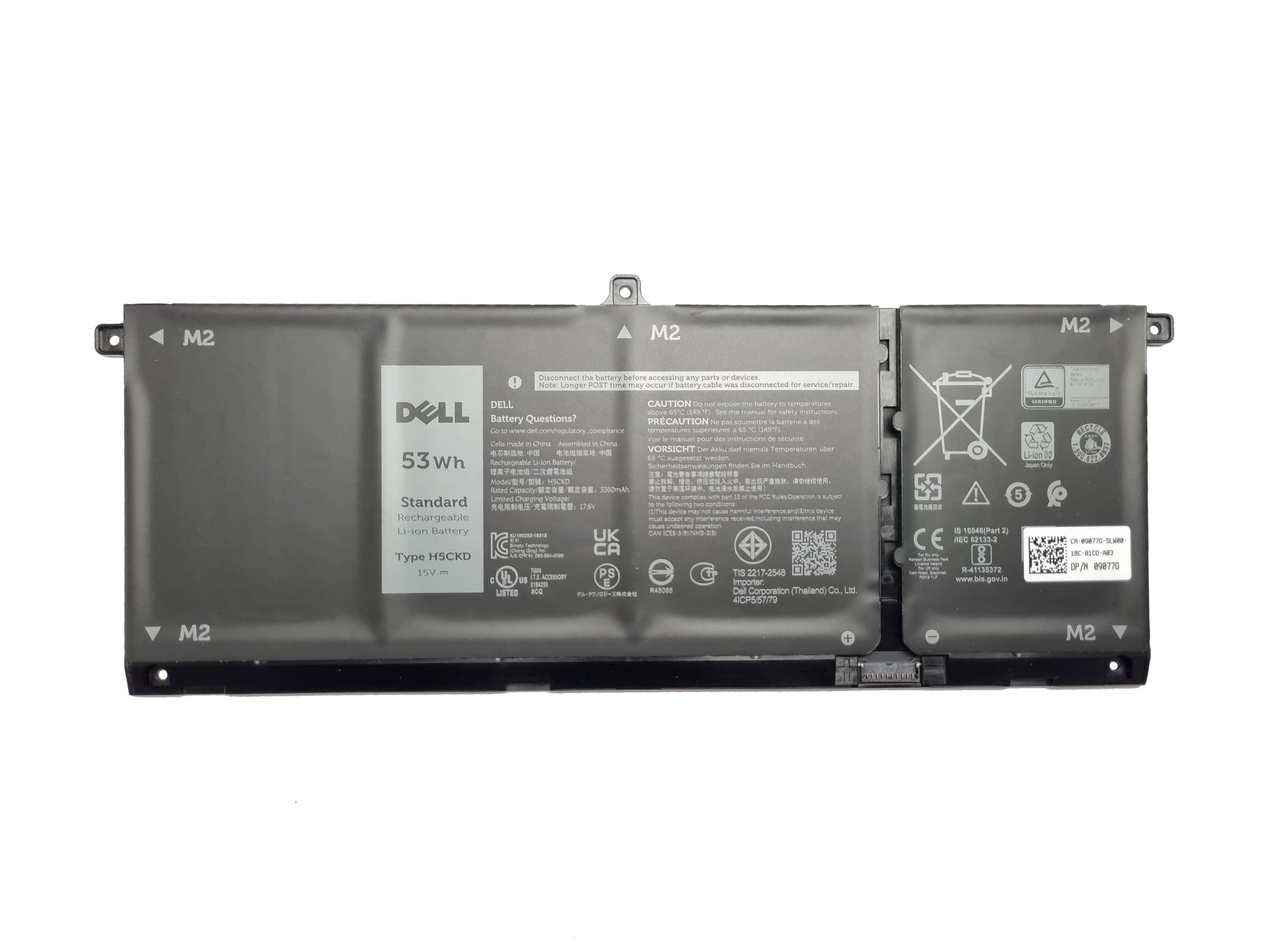

New and genuine Dell Latitude 5501 4 cells 53Wh laptop Battery. The type code is H5CKD and the Dell part numbers are 9077G and TX0D3.

Condition: Brand new stock from Dell

Type Code: H5CKD

Dell Part Number / DPN: 9077G / TX0D3

Type: H5CKD

Dell Part nos (DPN) 9077G, 09077G, TX0D3, 0TX0D3, 7T8CD, 07T8CD

Battery Cells: 4 Cell

Watt-Hours: 53Whr

Volts: 15V

Fits the following Dell Laptops:

Dell Latitude 5501 3410, 3510, 3120


Dell Inspiron 5406 2-in-1, 5401 5400 2-in-1, 5505, 5501, 7500 2-in-1 Silver, 7405 2-in-1, 7300 2-in-1 Silver, 5402, 5502, 7506 2-in-1 Silver, 7306 2-in-1 Silver, 5300, 5301


Please note: The battery cable and crews are not included. Please retain the original cable and screws for the installation of this part.

UK Seller - Free UK Next-day Shipping - 12 Months Warranty



How to install the battery

PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We also recommend using anti-static equipment to prevent hardware damage.

Removing the old battery

1. Power off the laptop.

2. Turn over the laptop and unscrew the base plate cover.

3. Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)

4. Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)

5. Unscrew the battery and remove the battery from the laptop.

Installing the New Battery

1. Align the new battery into position (Do not plug the battery in yet)

2. Install the battery screws

3. Plug the battery cable into the motherboard

4. Replace the base plate by applying light pressure to ensure it's seated correctly.

5. Install the base plate screws

6. Plug the power adapter into the laptop and switch on the laptop.
