Dell
Dell Latitude 5420 15 5520 Precision 3560 63Wh Battery RJ40G 1K2CF M033W 75X16
Dell Latitude 5420 15 5520 Precision 3560 63Wh Battery RJ40G 1K2CF M033W 75X16
SKU:RJ40G
Couldn't load pickup availability

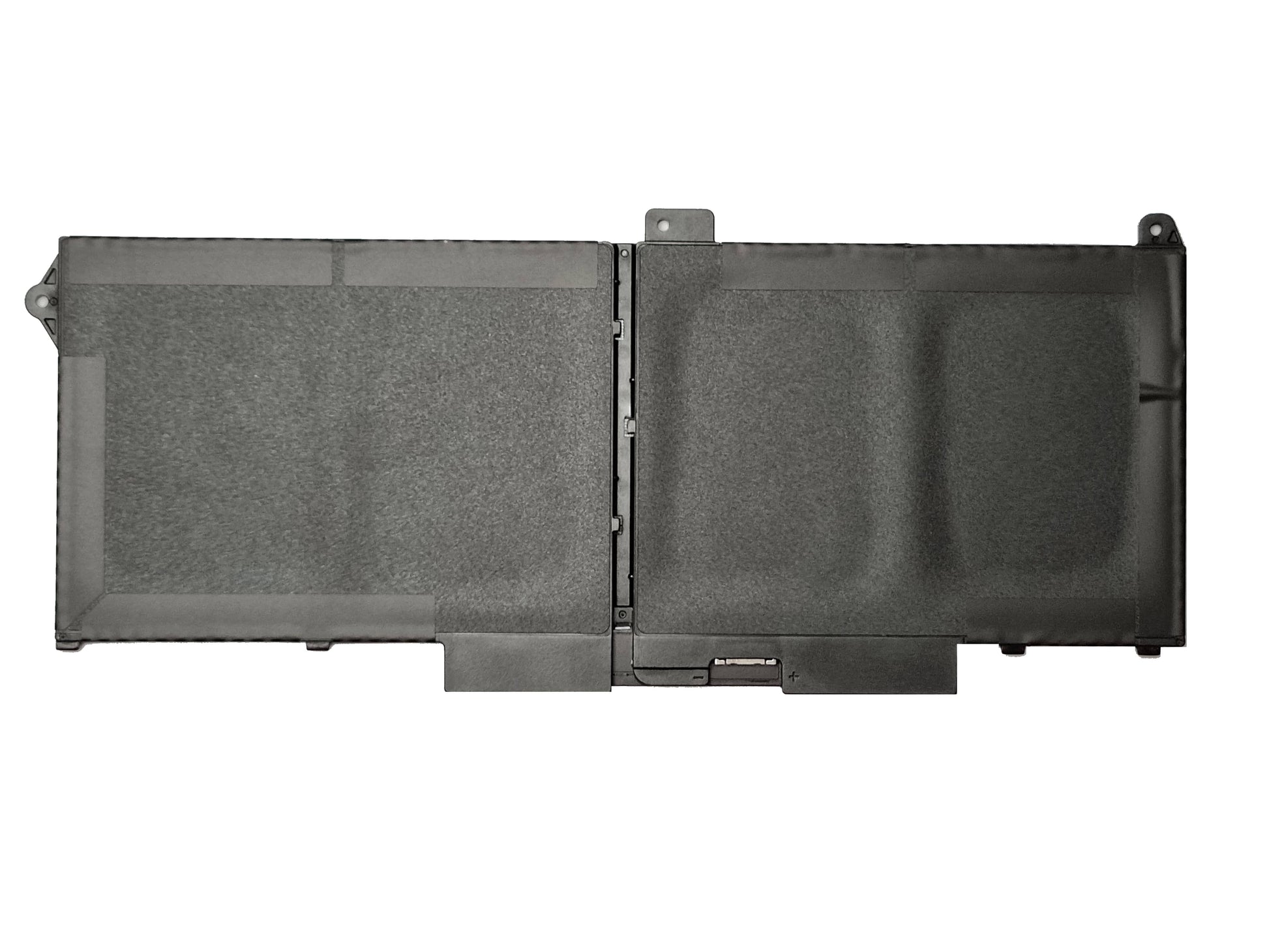

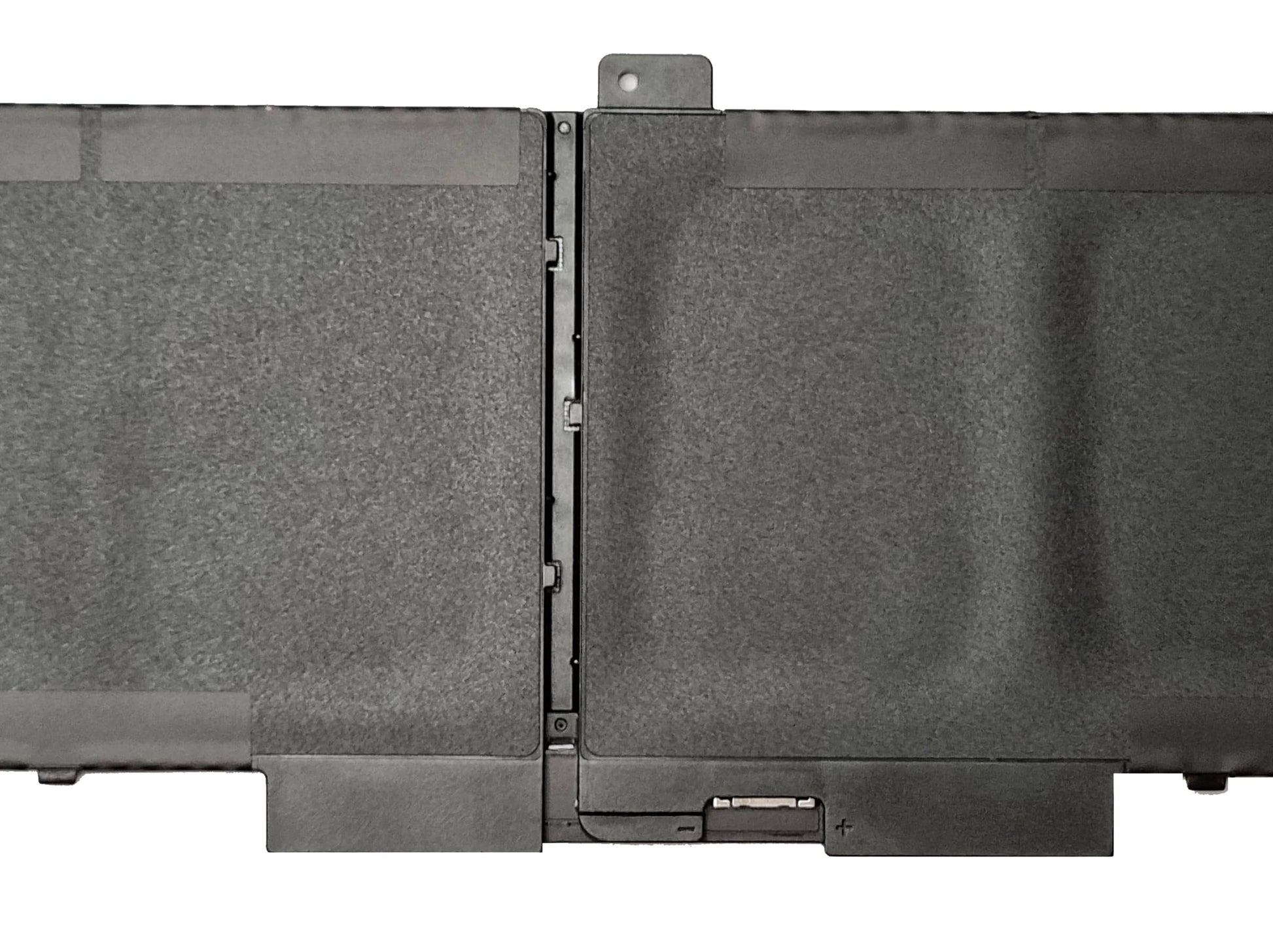

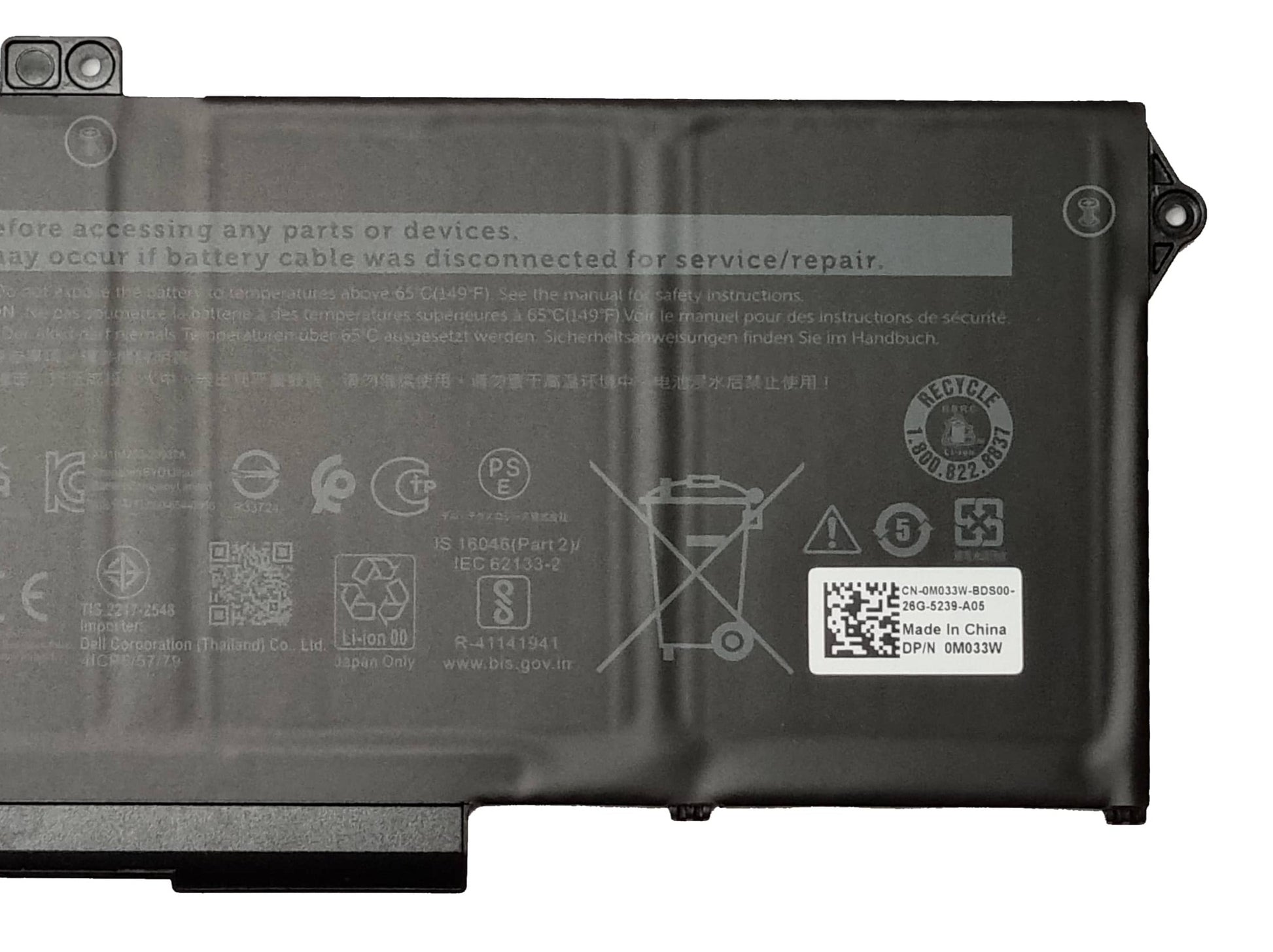

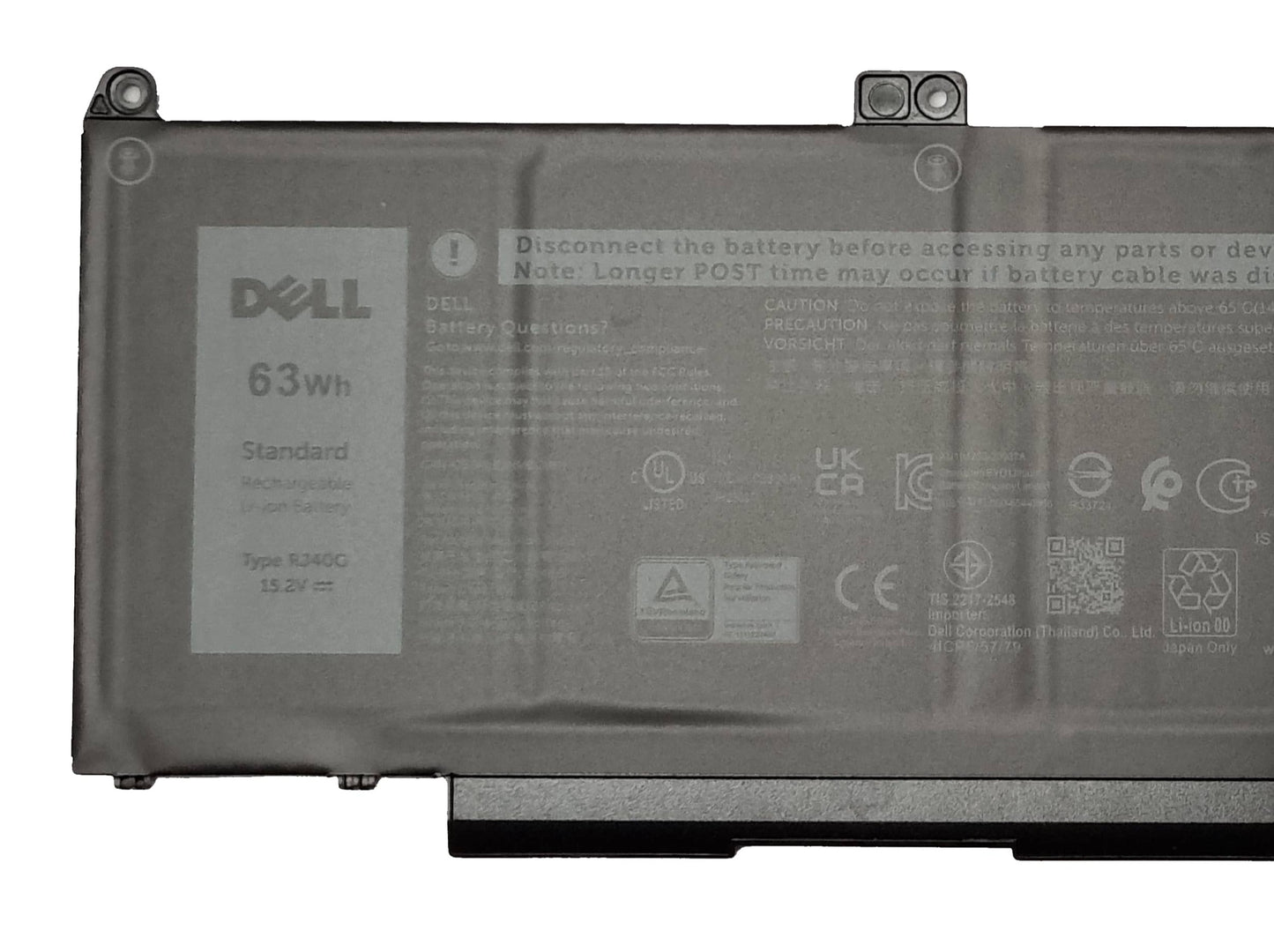

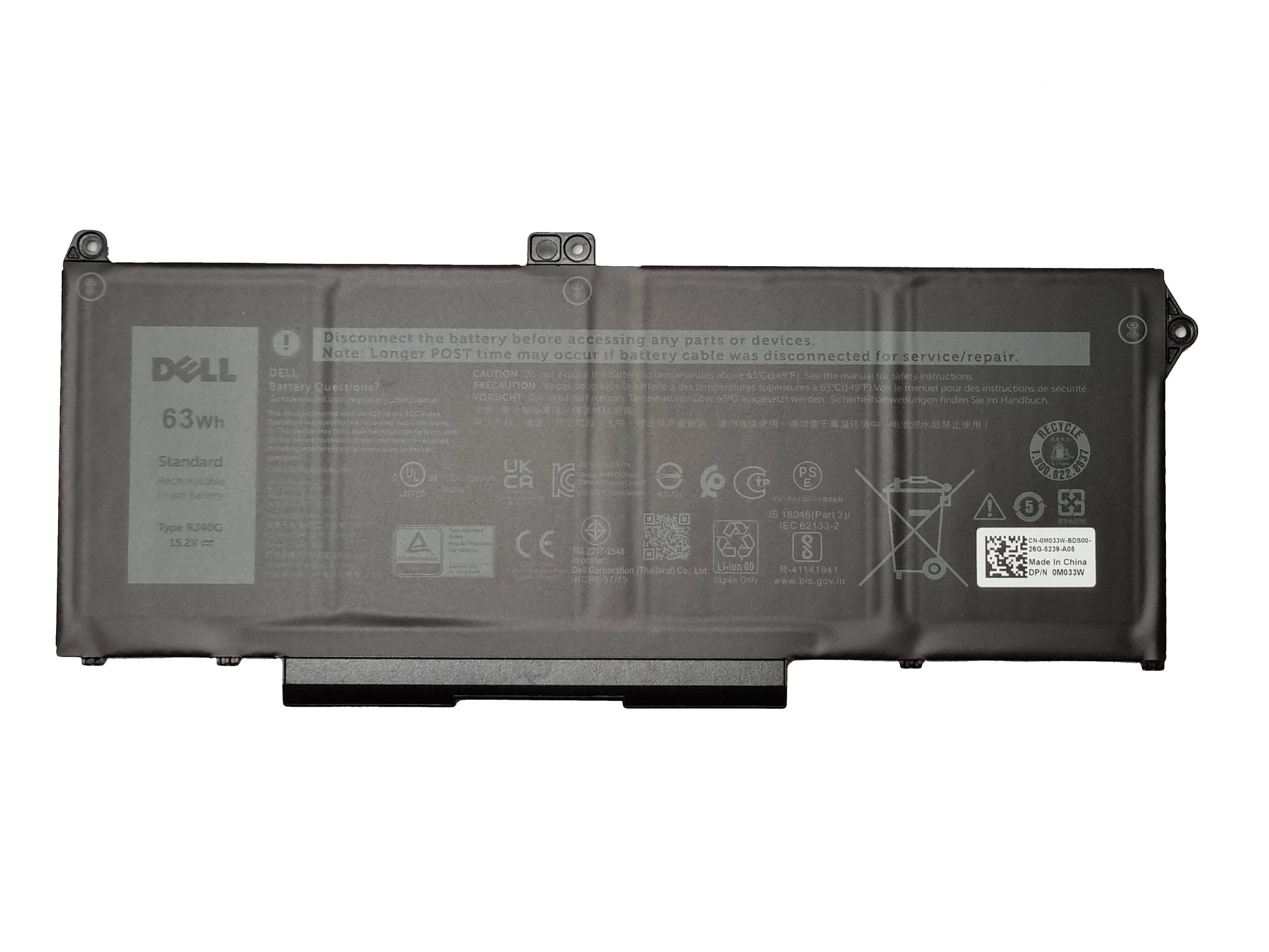

New Dell 63Whr 4 Cell laptop battery for Latitude 14 5420 and 15 5520
This new Dell 63Whr 4-Cell laptop battery is designed for top performance, with a capacity of 63 watt-hours and 15.2 volts. Compatible with Dell Latitude 14 5420 and 15 5520, this battery provides reliable, long-lasting power to keep you productive.
Specifications
Condition: Brand new stock from Dell
Type Code: RJ40G
Dell Part Number (DPN): 1K2CF / 01K2CF / M033W / 0M033W / 75X16 / 075X16 / 6RNMX / 06RNMX
Battery Cells: 4 Cell
Watt-Hours: 63Whr
Volts: 15.2V
Fits the following Dell Laptops:
Dell Latitude 14 5420
Dell Latitude 15 5520
Dell Precision 15 3560
Please note: Screws are not included. Please retain the original screws for the installation of this part.
UK Seller - Free UK Next-day Shipping - 12 Months Warranty
How to install the battery
PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We also recommend using anti-static equipment to prevent hardware damage.
Removing the old battery
1. Power off the laptop.
2. Turn over the laptop and unscrew the base plate cover.
3. Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)
4. Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)
5. Unscrew the battery and remove the battery from the laptop.
Installing the New Battery
1. Align the new battery into position (Do not plug the battery in yet)
2. Install the battery screws
3. Plug the battery cable into the motherboard
4. Replace the base plate by applying light pressure to ensure it's seated correctly.
5. Install the base plate screws
6. Plug the power adapter into the laptop and switch on the laptop.
