Dell Precision M3800 XPS 15 9530 top end assembly 4K UHD touch screen 6H0NN

Dell Precision M3800 XPS 15 9530 top end assembly 4K UHD touch screen 6H0NN

Currently out of stock - Contact us and we will check availability.

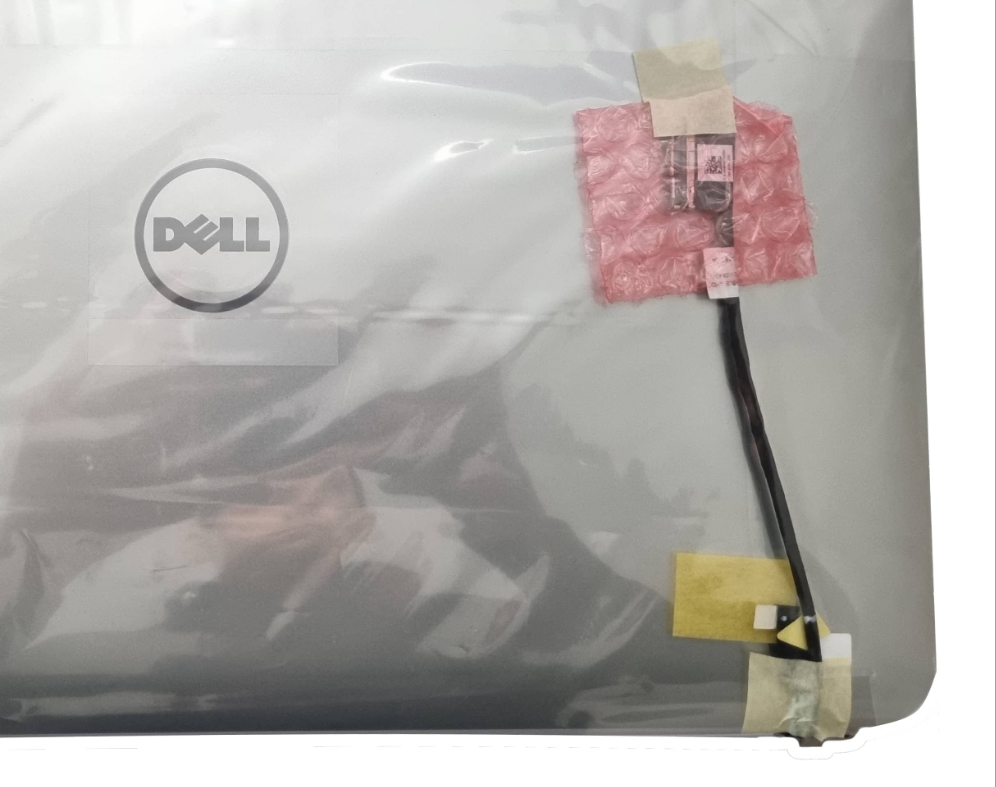

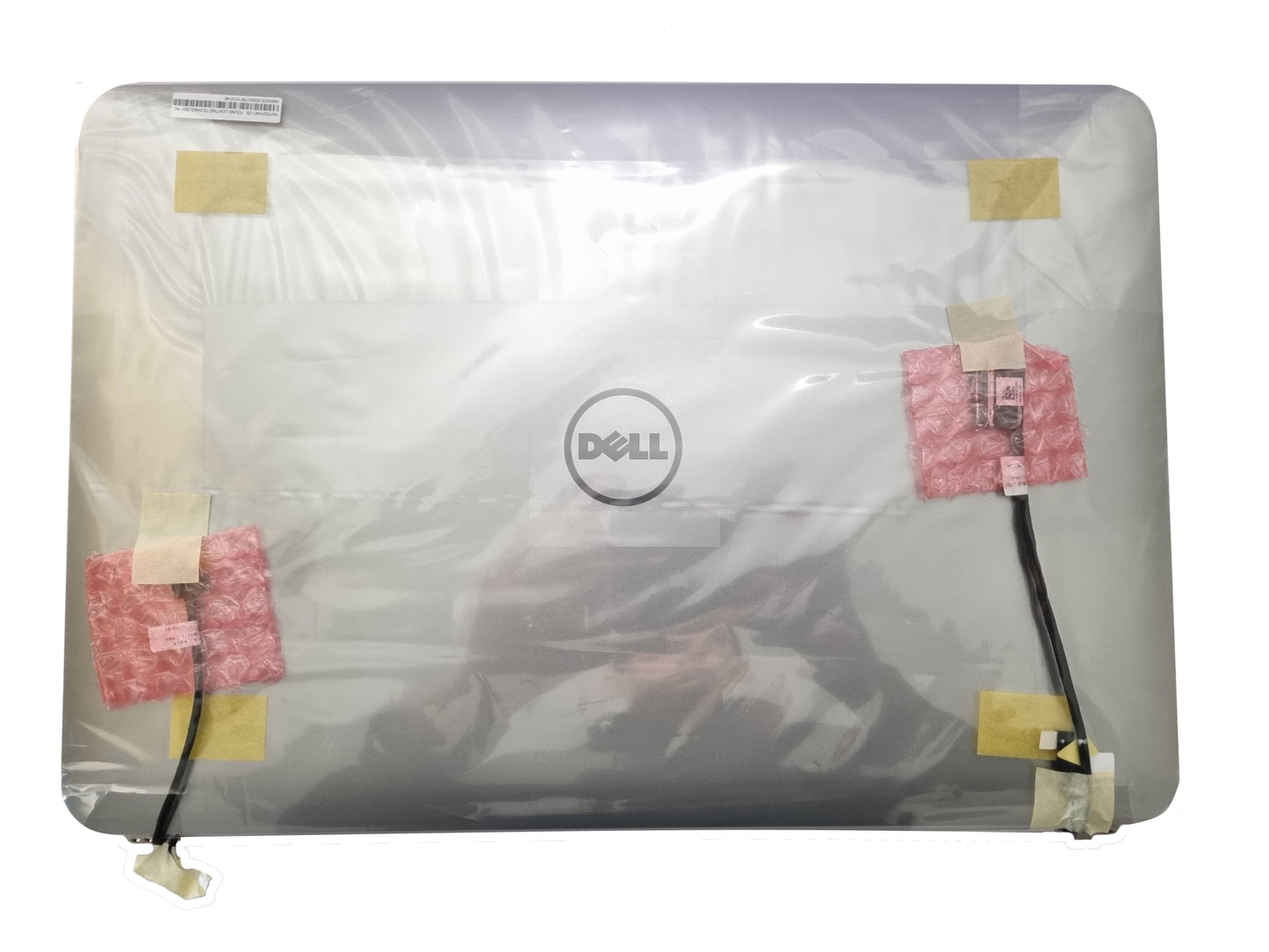

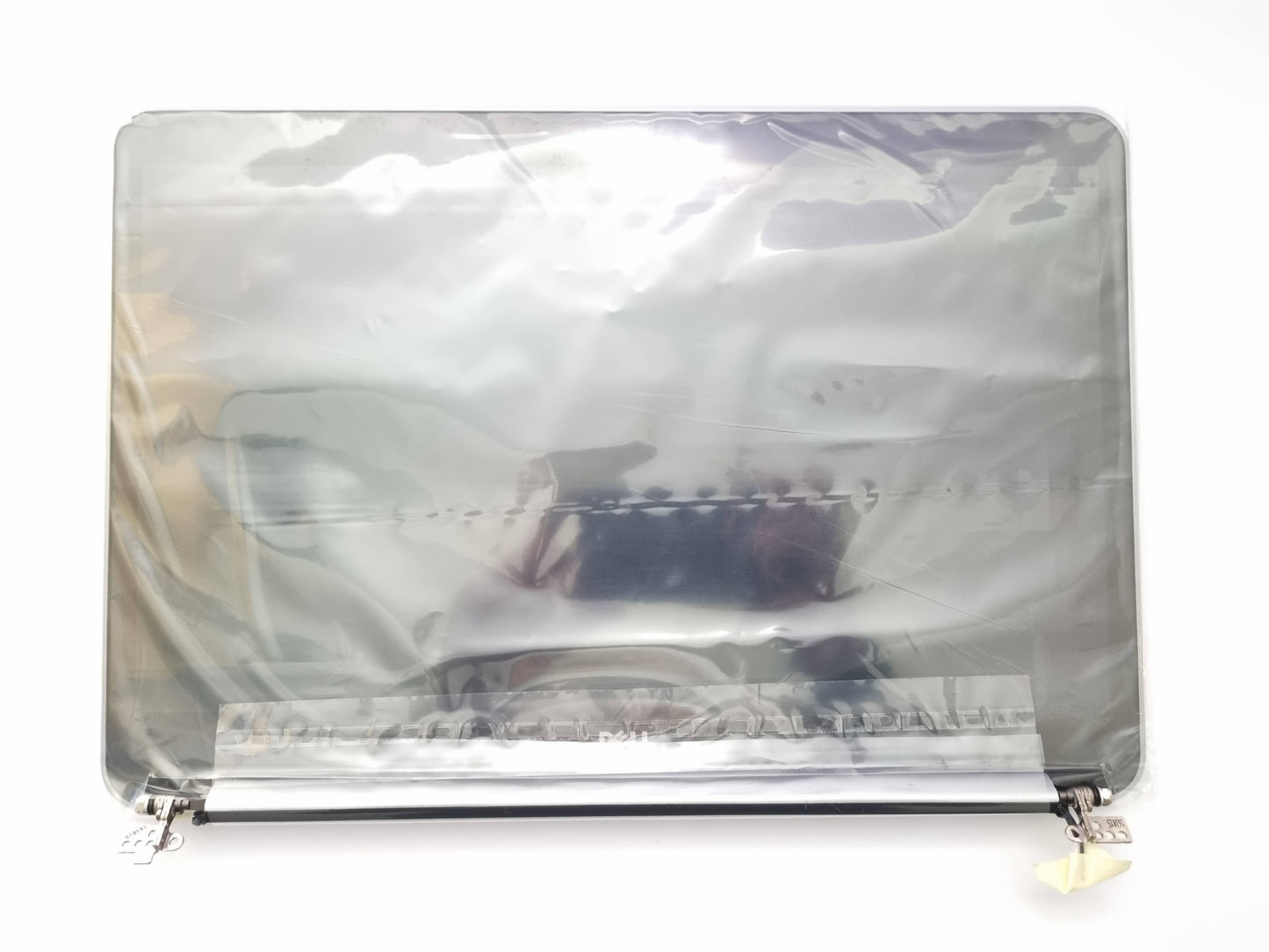

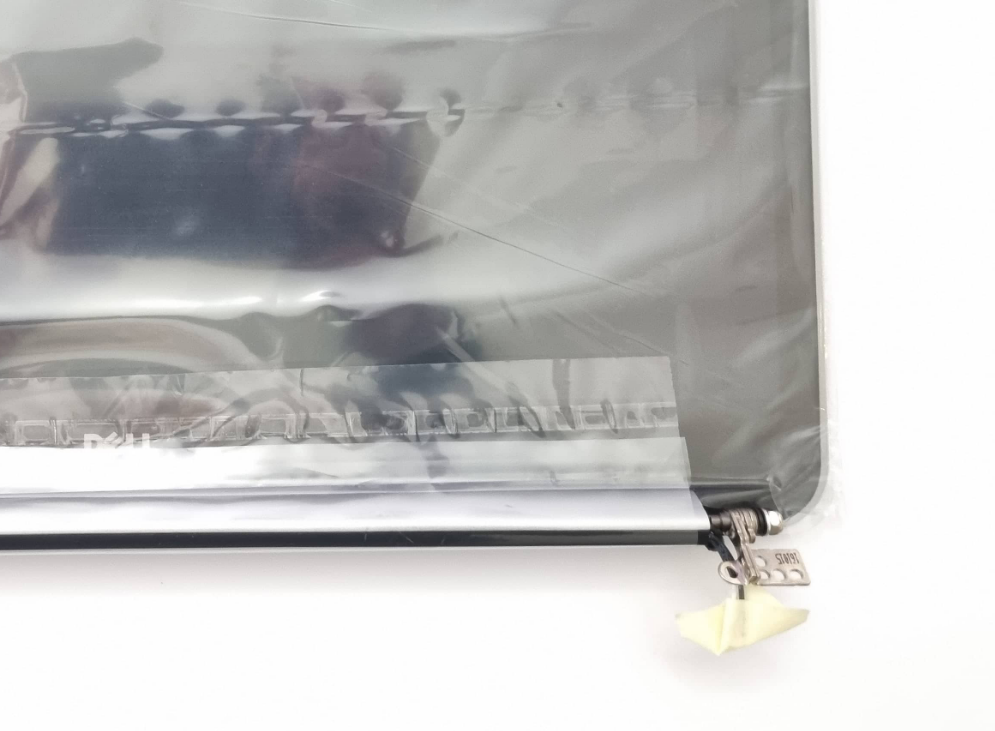

Genuine Dell replacement top-end assembly with a 4K UHD touchscreen. This part fits Dell Precision M3800 and Dell XPS 15 9530. The Dell part number is 6H0NN. This part includes the wifi antennas, hinges, and camera.

Condition: Brand New - Packed in a Dell box

Brand: Dell

Colour: Silver

Dell Part Numbers: 6H0NN, 06H0NN, CN-06H0NN

Screen Size: 15.6"

Touchscreen: Yes

Screen Resolution: 3840 x 2160

Screen Connection type: Ribbon cable

Includes: Back lid, front bezel, 4K UHD touch screen, Wifi antennas, hinges, and camera.

Fits the following laptops:

Dell Precision M3800

Dell XPS 15 9530

 UK Seller - Free UK Next-day Shipping - 12 Months Warranty

How to Open and install the new screen assembly

PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We recommend only competent computer engineers should install this part. We also recommend using anti-static equipment to prevent hardware damage.

Uninstalling the old top-end assembly:

Remove the base cover screws

disconnect the battery cable

Disconnect antenna cables from the WLAN card, the camera cable from the I/O board, and the touch panel and screen display cables from the motherboard.

Remove the screws that secure the display hinges to the palm rest assembly.

Lift and remove the palm rest assembly from the display assembly.

Slide the palm rest assembly towards you from under the hinges to release the display assembly.

Installing the new top-end assembly:

Align the palm rest assembly on the display assembly. (lift the hinges if required)

Tighten the screws to secure the display hinges to the palm rest assembly.

Route the touch panel, display, and camera cables through the routing tabs.

Connect antenna cables to the WLAN card, the camera cable to the I/O board, and the touch panel and screen display cables to the motherboard.

Connect the battery cable to the motherboard connector

Install the base cover and insert the screws.
