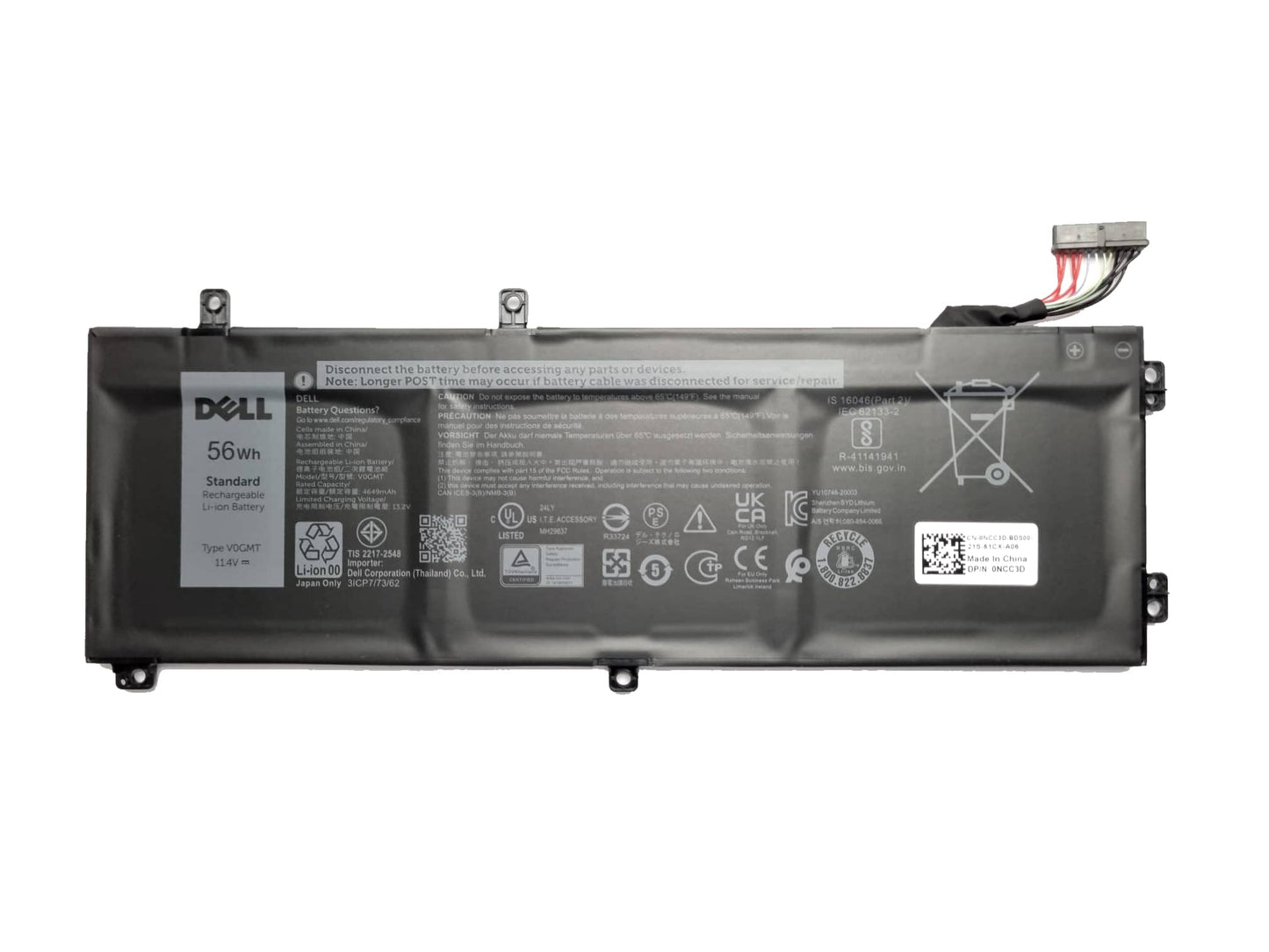

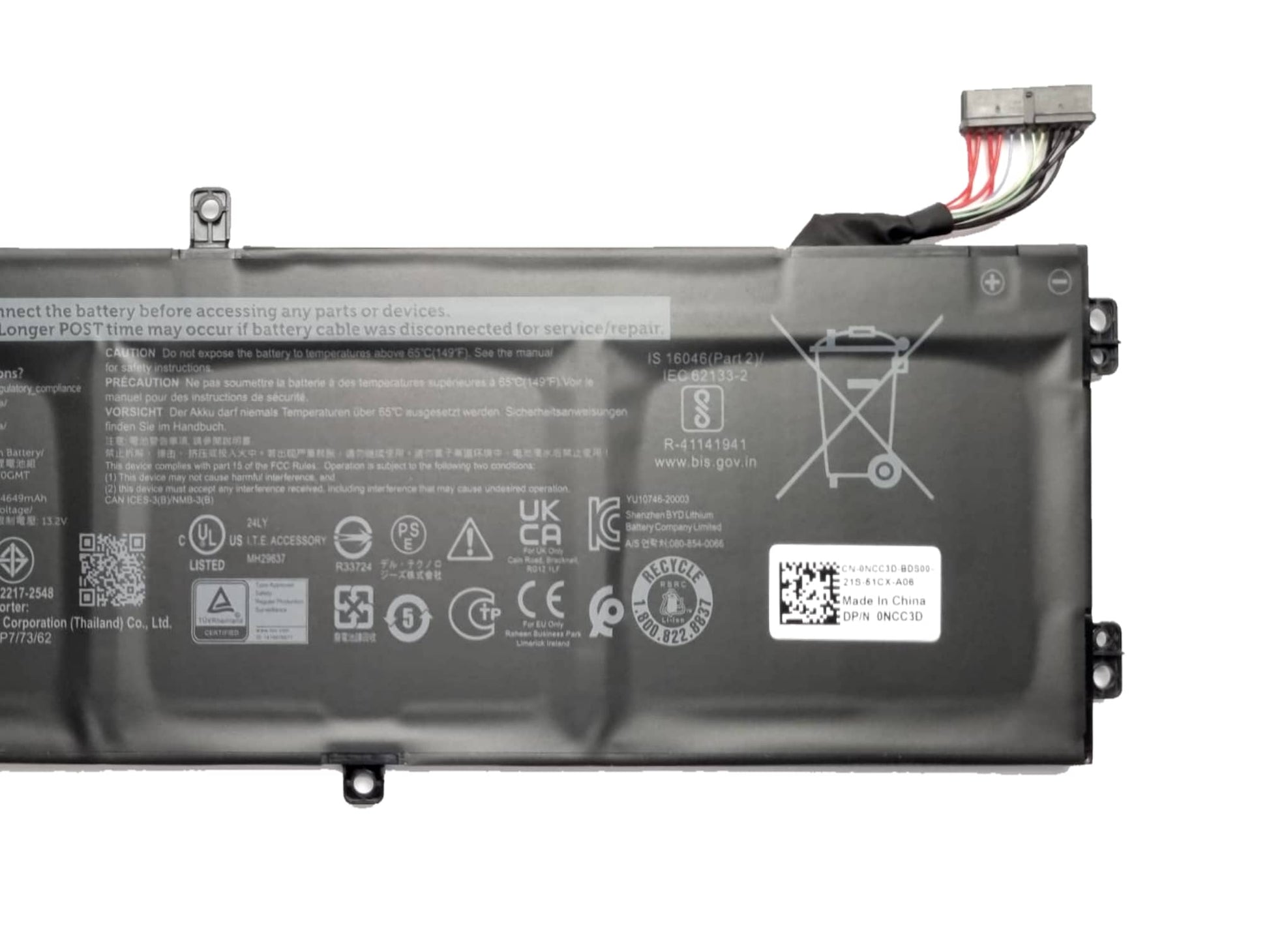

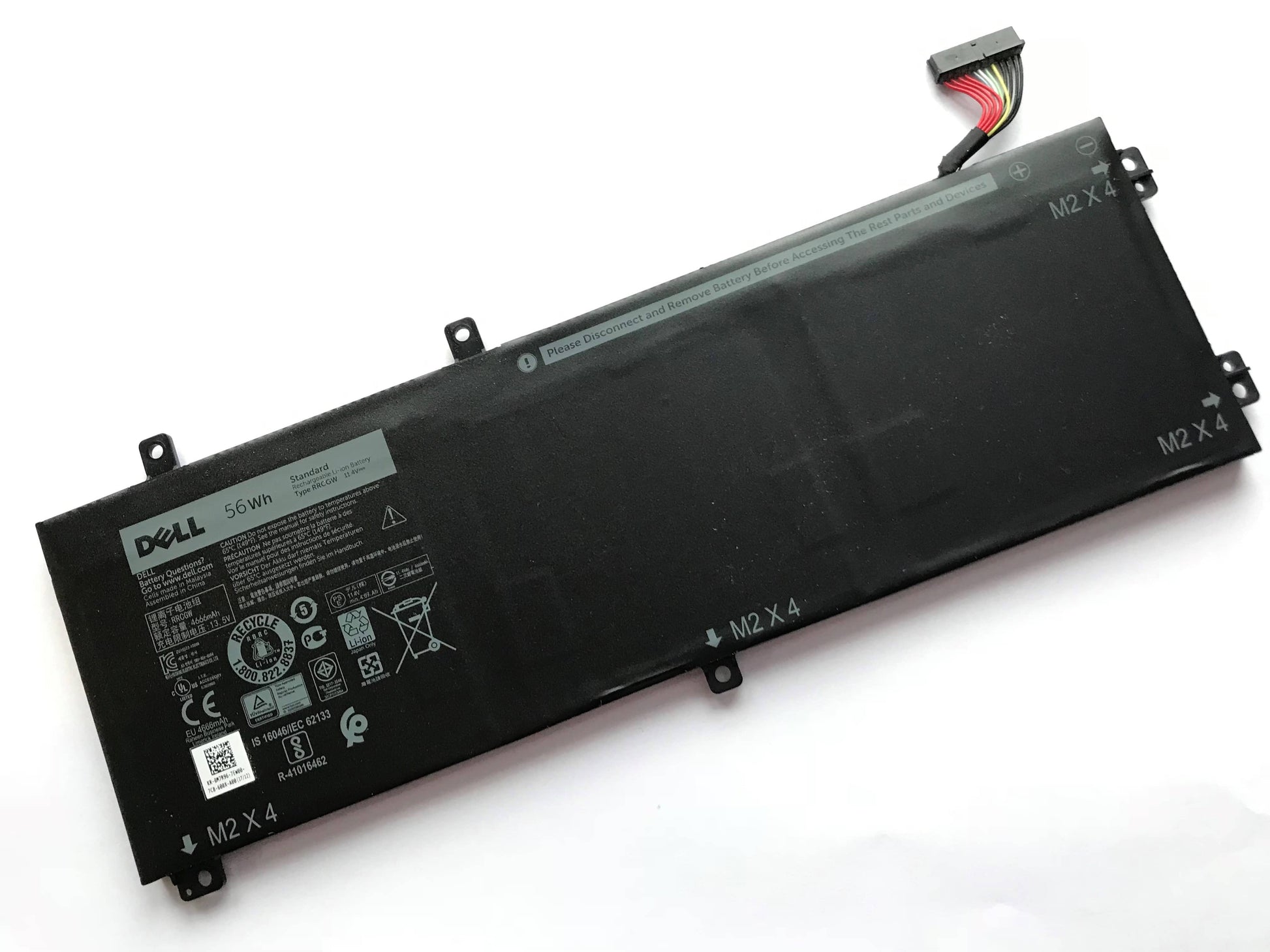

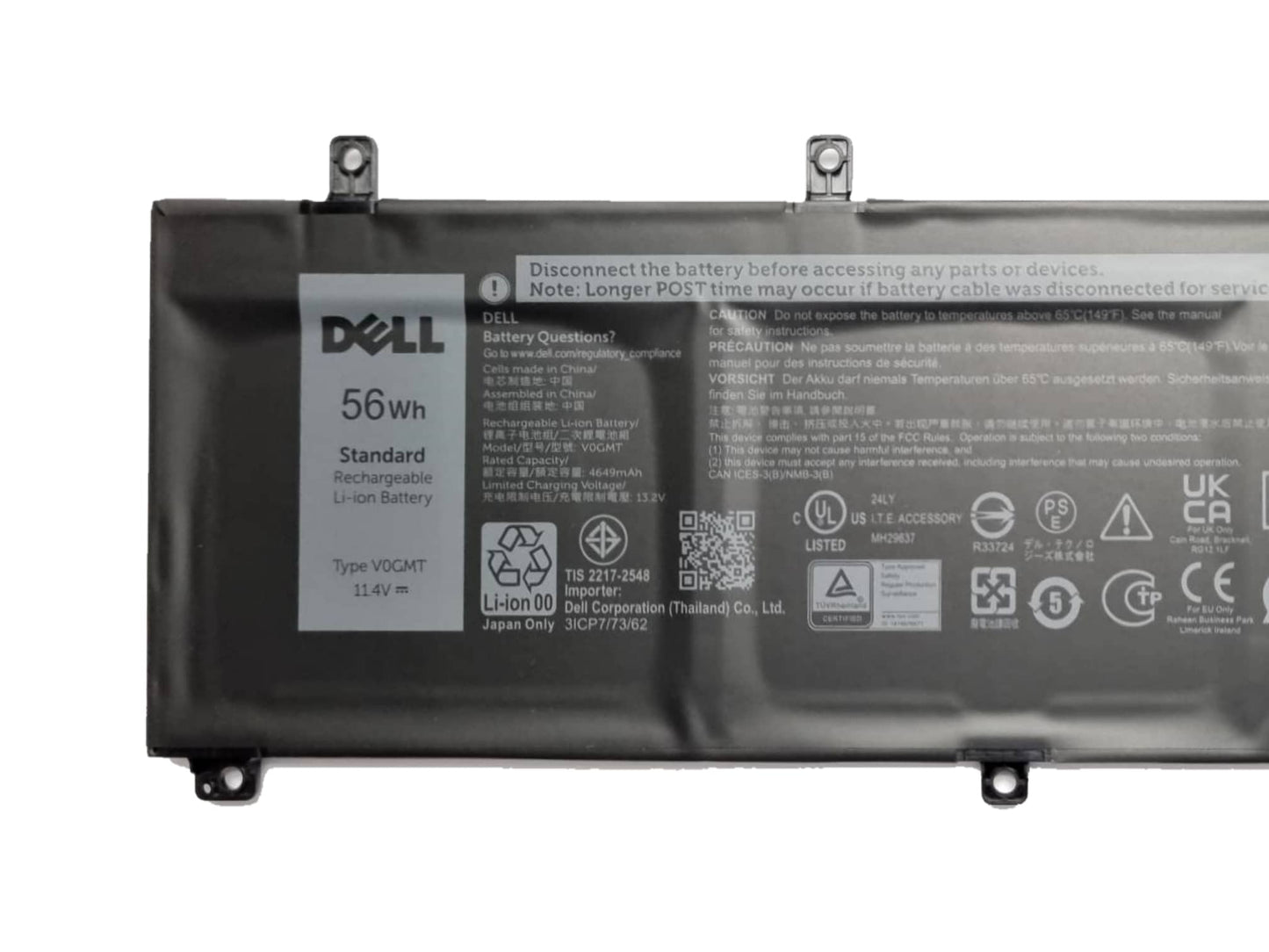

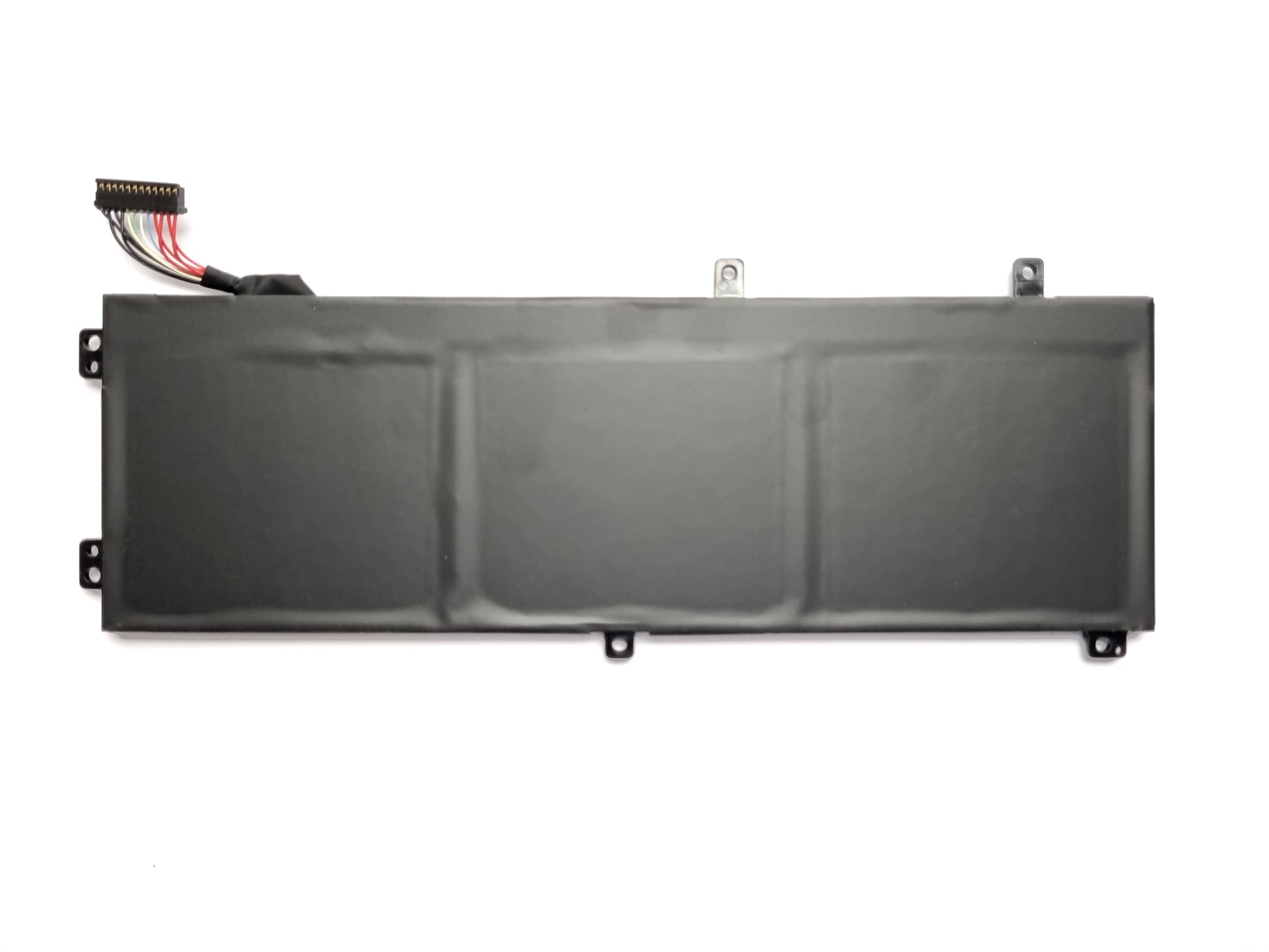

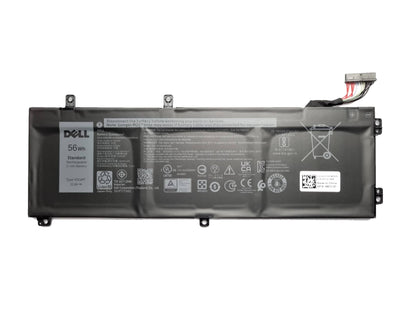

Dell Precision 5510 / XPS 9550 Laptop battery 56wH RRCGW M7R96

Genuine Dell Precision 5510 / XPS 15 9550 56wH TYPE RRCGW/H5H20

DP/N M7R96 / 62MJV / 5D91C / CP6DF

UK Seller - Free UK Next Day Shipping - 1 Year

Warranty.

Please note this battery is now end of life from Dell, however, we can source a good quality compatible product.  Please call  us for details: 01243 837777

Condition: New Dell Stock
Item: Dell Laptop Battery
Brand: Dell Genuine Part
Type: RRCGW / H5H20

Dell Part Number - DP/N: M7R96 / 62MJV / 5D91C / CP6DF

Capacity: 56Wh
Cells: 3 Cell
Suitable for:
Dell Precision 5510 Battery
Dell XPS 15 9550 Battery

Supplied with 12 months warranty - next-day shipping on all orders before 4 pm Monday - Friday.

Please note: Screws are not included. Please retain the original screw for the installation of this part.

If you have any questions, please call us on 01243 866053

How to install the battery

PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We also recommend using anti-static equipment to prevent hardware damage.

Removing the old battery

1. Power off the laptop.

2. Turn over the laptop and unscrew the base plate cover.

3. Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)

4. Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)

5. Unscrew the battery and remove the battery from the laptop.

Installing the New Battery

1. Align the new battery into position (Do not plug the battery in yet)

2. Install the battery screws

3. Plug the battery cable into the motherboard

4. Replace the base plate by applying light pressure to ensure it's seated correctly.

5. Install the base plate screws

6. Plug the power adapter into the laptop and switch on the laptop.
