Dell Alienware
Dell G Series & Alienware M15, M17 Battery 60 Whr 4 Cell 1F22N 8622M JJPFK
Dell G Series & Alienware M15, M17 Battery 60 Whr 4 Cell 1F22N 8622M JJPFK
Out of stock
Couldn't load pickup availability
Shipping options and handling times
Shipping options and handling times
We offer fast next-day UK shipping. Orders placed before 4 pm will be shipped the same day via DPD, UPS, or Royal Mail. (Excluding bank holidays). Weekend delivery is available for an extra fee.
Please Note: We can now ship to Channel Islands; Northern Ireland and the Isle of Man.
We also offer plain label shipping.
For more information and pricing on express shipping services, Please click here.
Do you need a screwdriver set to open your Dell Laptop?
Do you need a screwdriver set to open your Dell Laptop?
Precision 24-in-1 Screwdriver set includes all the tip sizes required to open and dismantle Dell laptops.
Only £6 when purchased with any battery, DC port, or assembly part - Discounted at checkout.
Screwdriver sizes:
Torx screwdriver: T2 T3 T4 T5 T6 T7 T8 T9 T10 T15
Phillips screwdriver: 0.6 1.0 1.2 1.5 2.0 3.0
Flat screwdriver: 1.0 1.5 2.0 3.0 7.3
Point screwdriver: 0.8

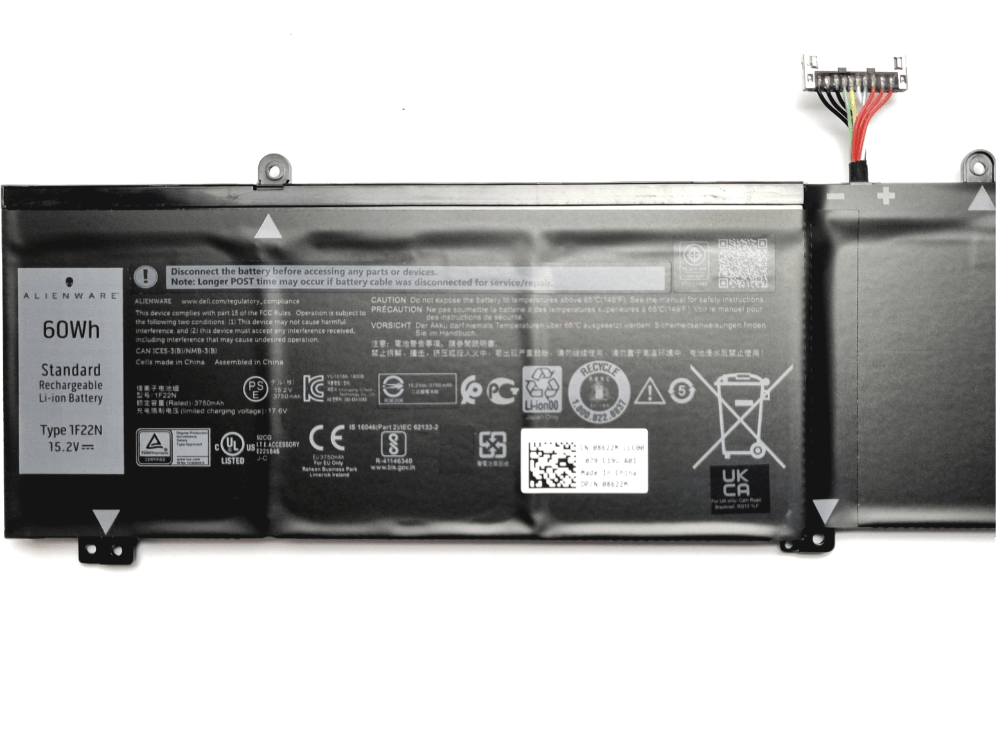

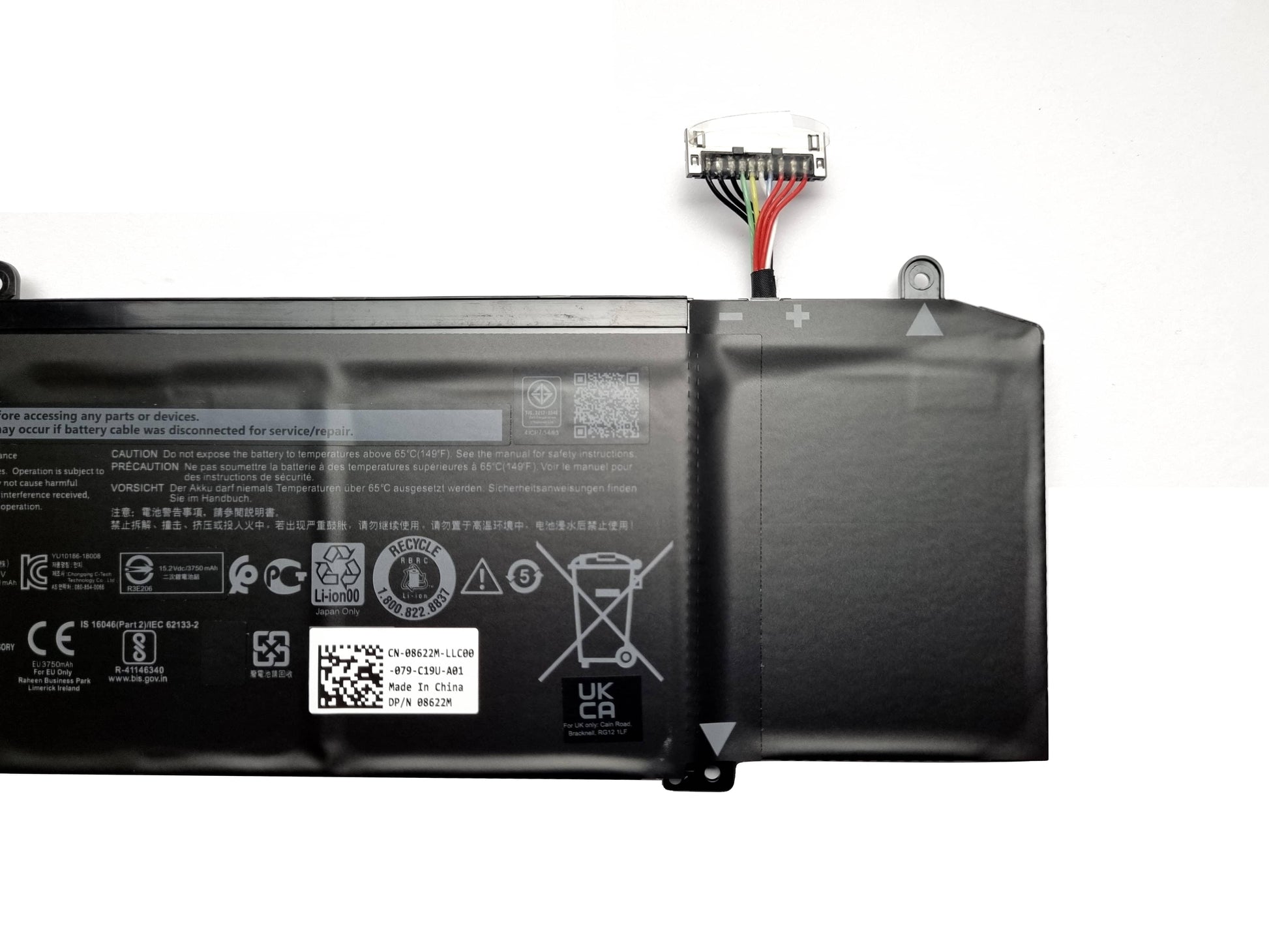

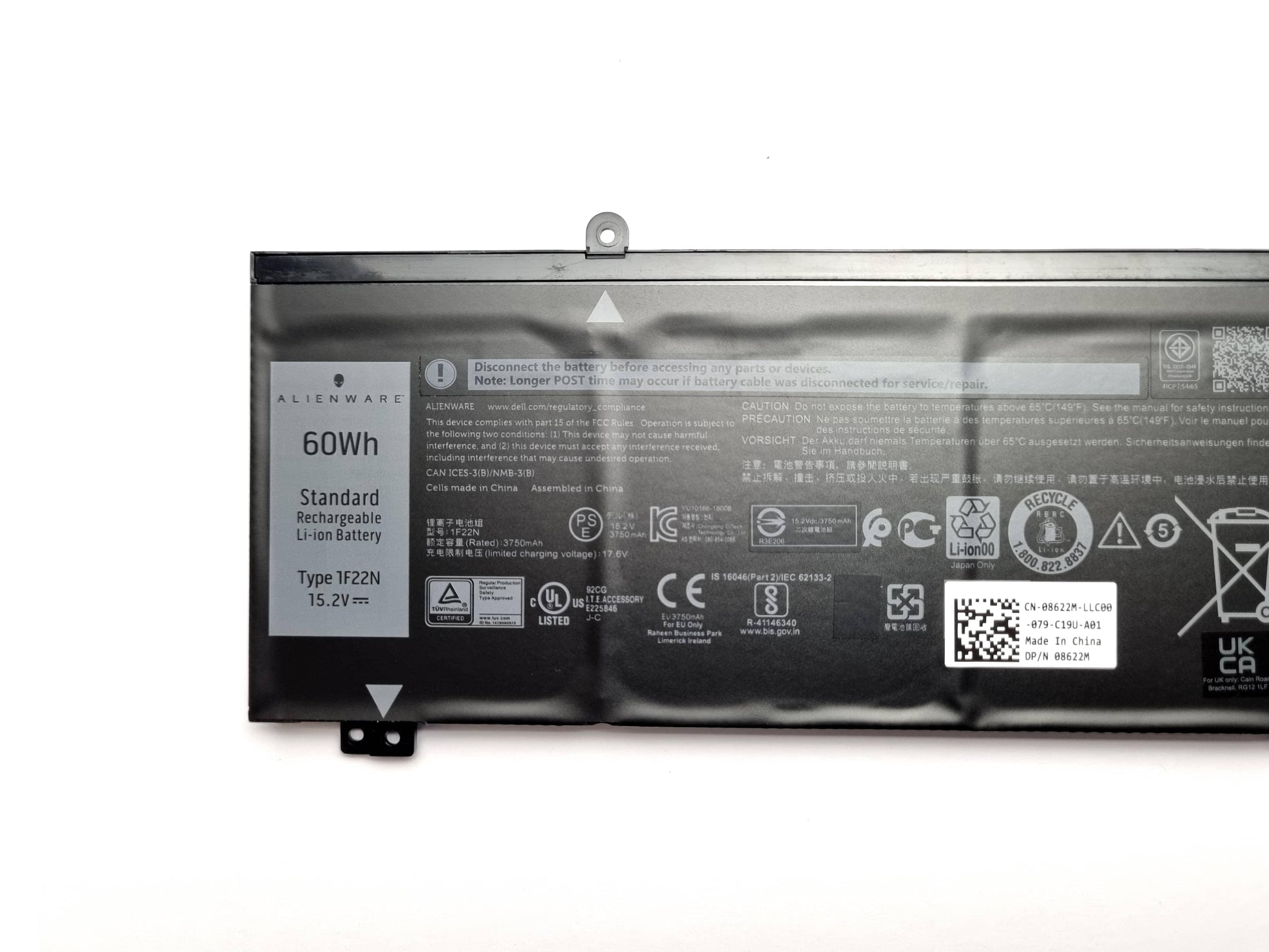

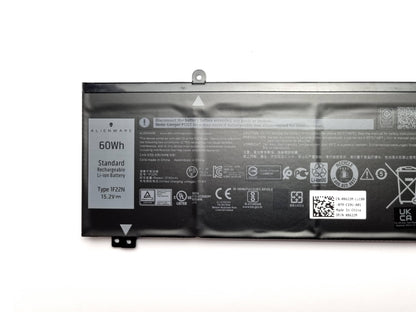

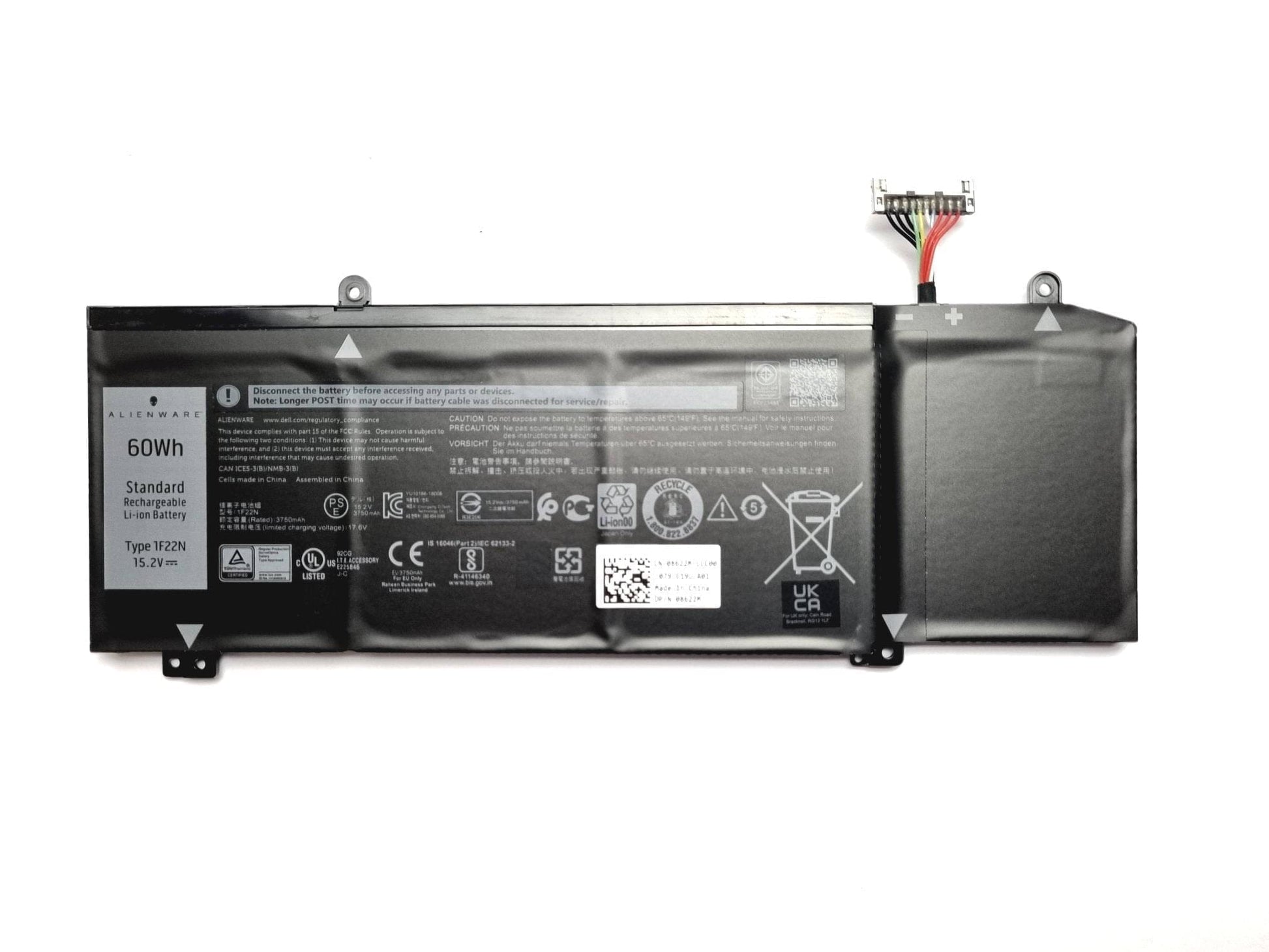

Genuine Dell Alienware replacement battery for M15 and M17
Condition: New Dell Stock
Wh: 60Wh
Cells: 4 Cell
Volts: 15.2v
Type Code: 1F22N
Dell Part Number DP/N: 8622M / 08622M / HYWXJ / 0HYWXJ / JJPFK / 0JJPFK
Fits the following Alienware laptops:
IMPORTANT ALIENWARE OWNERS: Please check your current battery type code matches the title before purchasing this product as there are many revisions of this laptop. if you are unable to do this please send us your service tag which can be found on the base of your laptop.
Alienware M15
Alienware M17
G Series G5 5590
G Series G7 7590
G Series G7 7790
Please note: Screws are not included. Please retain the original screw for the installation of this part.
UK Seller - Free UK Next-day Shipping - 12 Months Warranty
How to install the battery
PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We also recommend using anti-static equipment to prevent hardware damage.
Removing the old battery
1. Power off the laptop.
2. Turn over the laptop and unscrew the base plate cover.
3. Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)
4. Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)
5. Unscrew the battery and remove the battery from the laptop.
Installing the New battery
1. Align the new battery into position (Do not plug the battery in yet)
2. Install the battery screws
3. Plug the battery cable into the motherboard
4. Replace the base plate by applying light pressure to ensure it's seated correctly.
5. Install the base plate screws
6. Plug the power adapter into the laptop and switch on the laptop.
