Dell XPS 13 9350 13 9343 Laptop Battery 56Wh 4 Cell JD25G 5K9CP 90V7W

PLEASE NOTE: This battery has been discontinued by Dell and is no longer available. However, due to the demand for this battery, we now have a quality replacement available.

Click here to see the compatible battery.

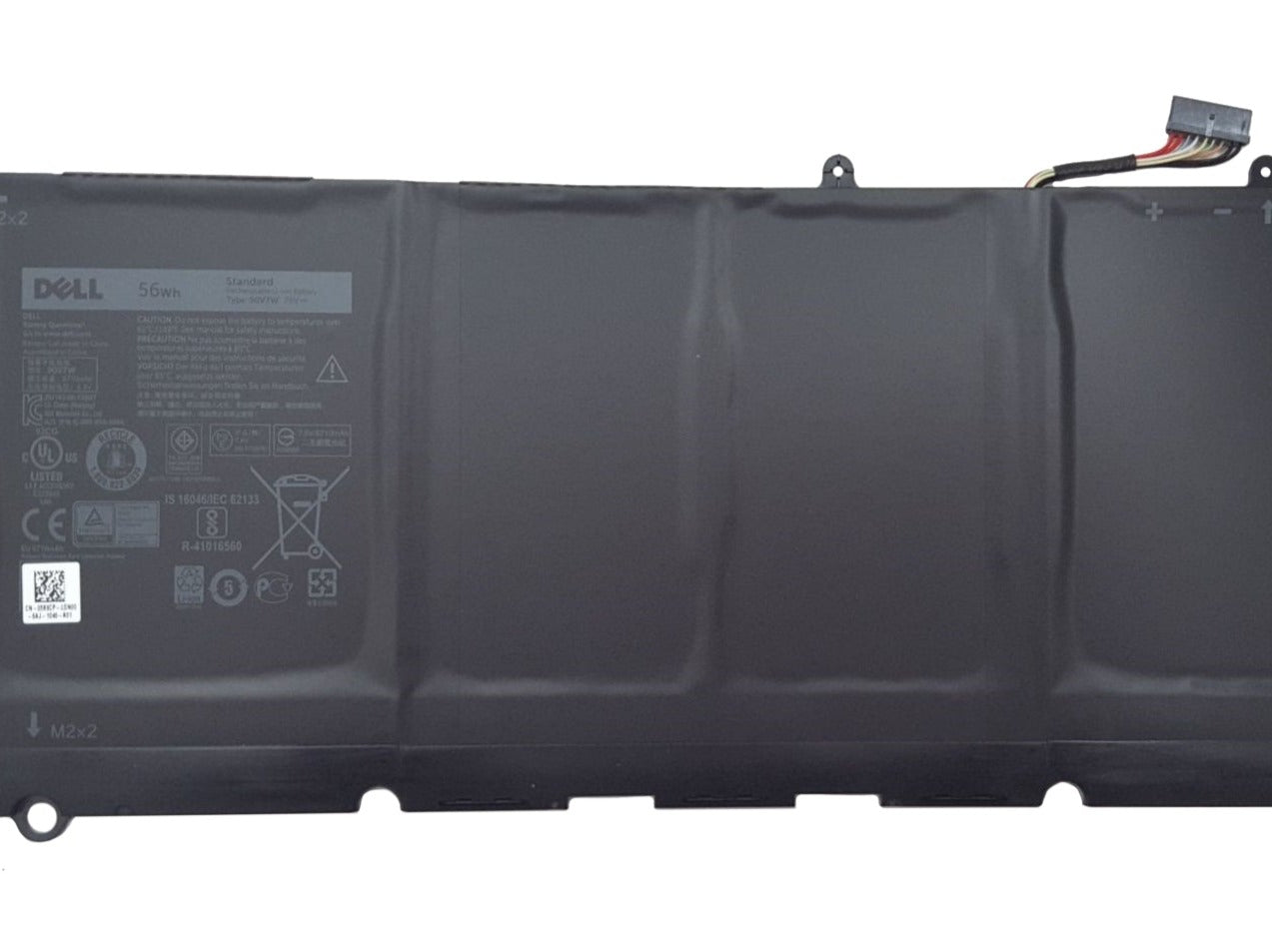

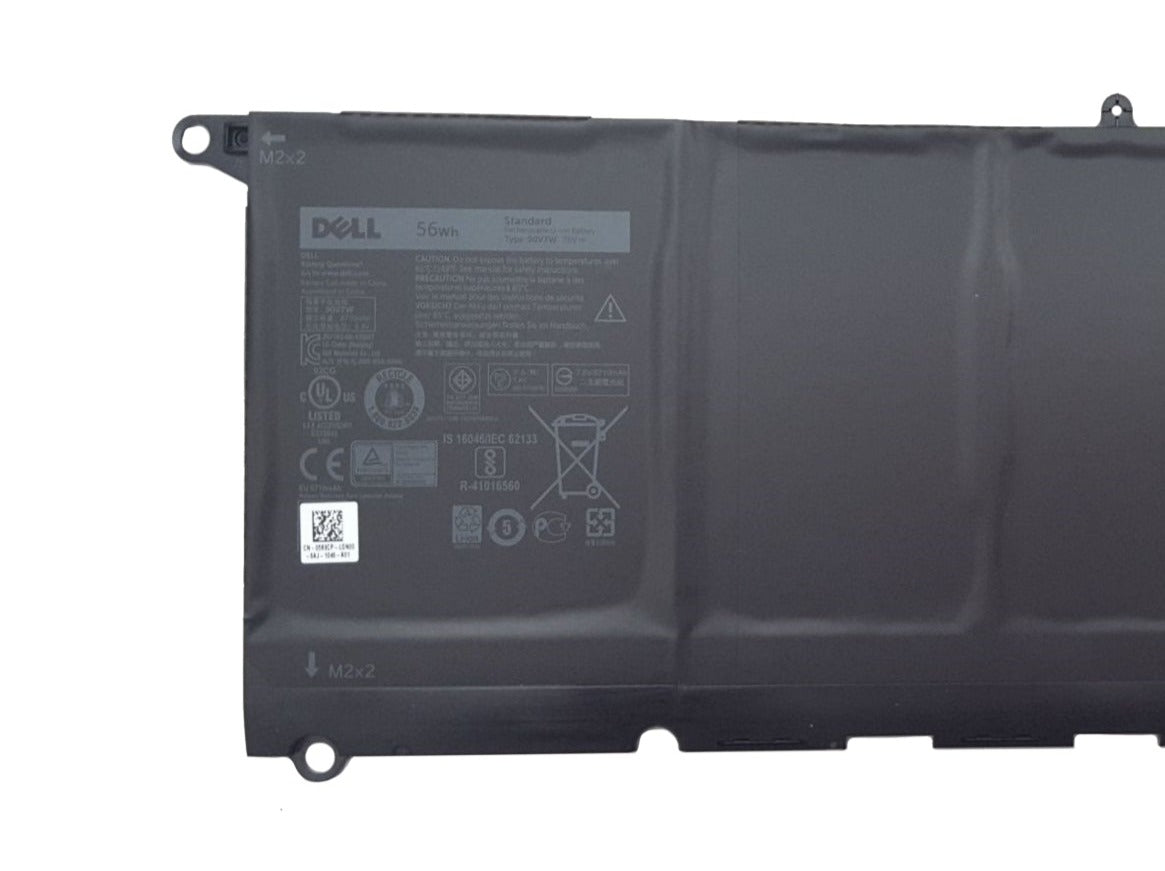

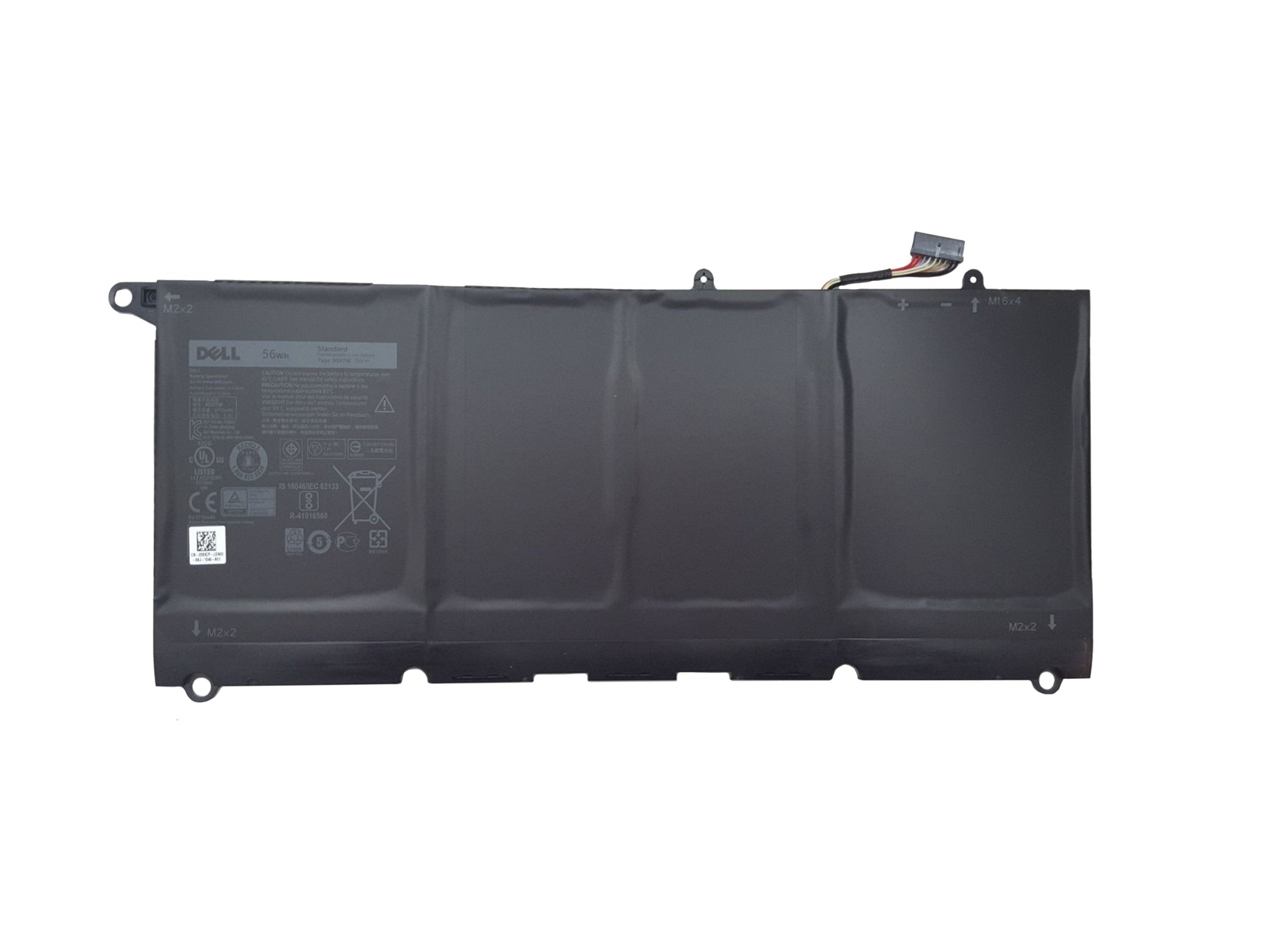

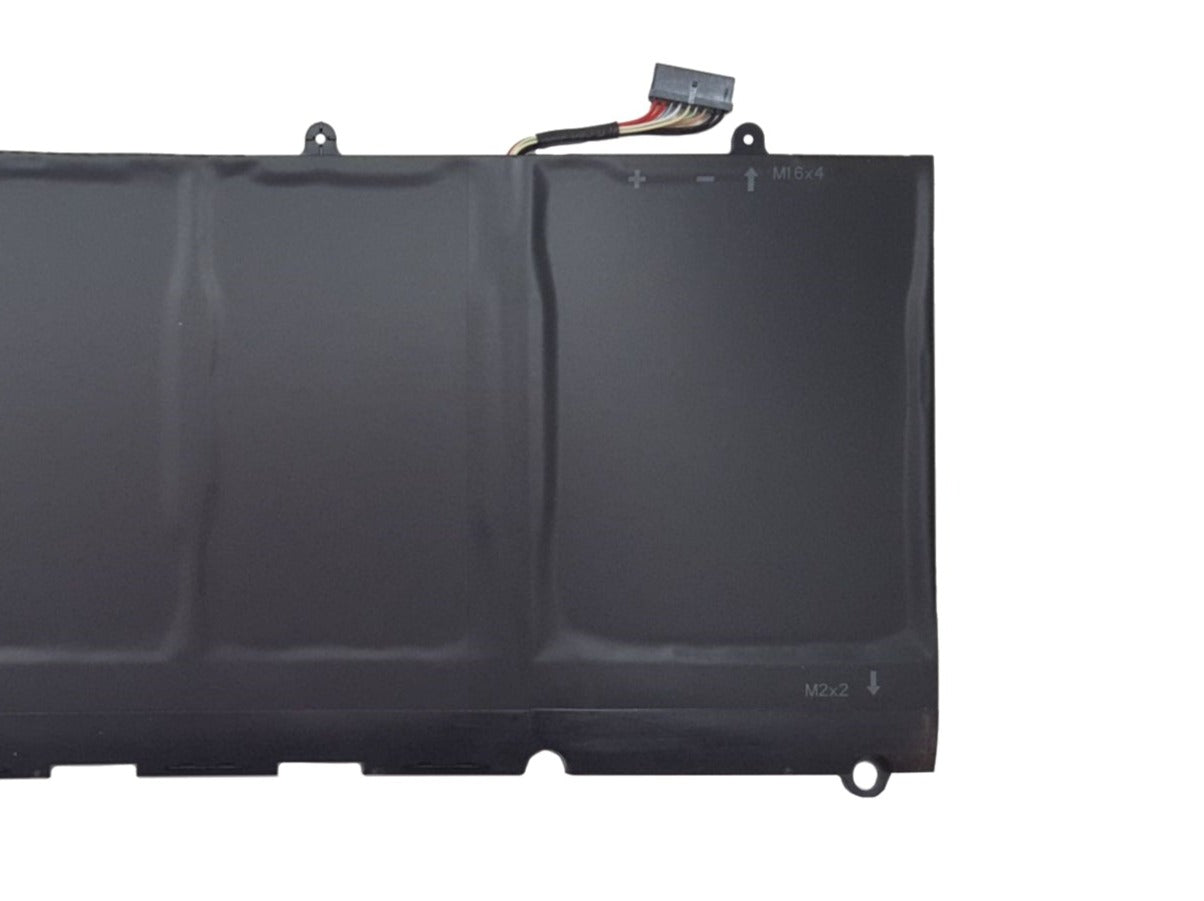

Dell XPS 13 9350 13 9343 Laptop Battery 56Wh 4 Cell JD25G 5K9CP 90V7W

Item: Dell 56Wh 4-Cell Battery

Condition: Dell

Brand: Dell Original Spare Part
Type: 90V7W
DP/N: 5K9CP ,JD25G ,05K9CP , 0JD25G, JHXPY, 0JHXPY

Voltage: 7.4v

Wh: 56 whr

Cells: 4 Cell

Fits the following Dell laptop:
Dell XPS 13 9350

Dell XPS 13 9343

Please note: Screws are not included. Please retain the original screws for the installation of this part.

UK Seller - Free UK Next Day Shipping - 1 Year Warranty

How to install the battery

PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We also recommend using anti-static equipment to prevent hardware damage.

Removing the old battery

1. Power off the laptop.

2. Turn over the laptop and unscrew the base plate cover.

3. Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)

4. Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)

5. Unscrew the battery and remove the battery from the laptop.

Installing the New Battery

1. Align the new battery into position (Do not plug the battery in yet)

2. Install the battery screws

3. Plug the battery cable into the motherboard

4. Replace the base plate by applying light pressure to ensure it's seated correctly.

5. Install the base plate screws

6. Plug the power adapter into the laptop and switch on the laptop.
